Air conditioning for BMW 2500-3.3Li 3.0S (1972)

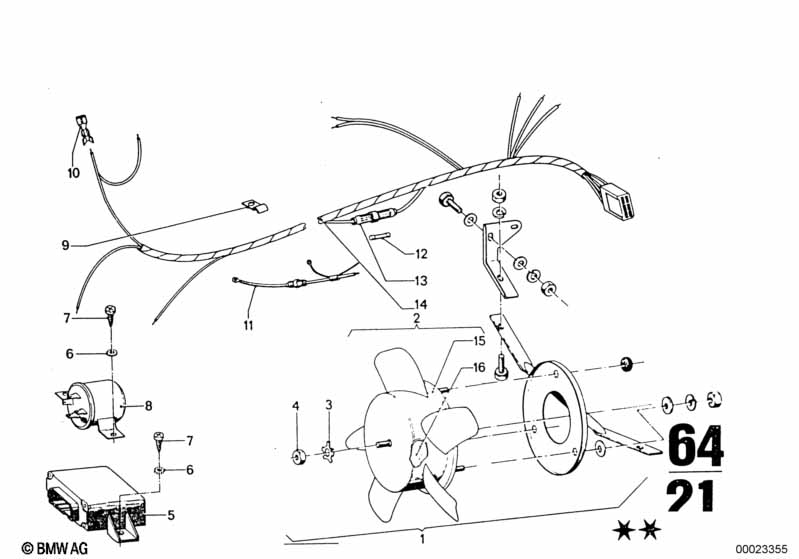

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blower unit | 1 | 64541351879 | $319.18 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Blower unit | 1 | 08/1968 | 02/1977 | 64541351878 | ENDED | Shop at ECS Tuning | |||
| 03 | Circlip | 1 | 64541352108 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex nut | 1 | 64541352107 | ENDED | Shop at ECS Tuning | |||||
| 05 | Temperature switch | 1 | 61311353217 | $262.26 | ENDED | Shop at ECS Tuning | ||||
| 06 | Tooth washer | A5,1 | 4 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Relay | 1 | 61311351317 | ENDED | Shop at ECS Tuning | |||||
| 09 | Clamp | 1 | 62128570104 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cable socket female | B=6,5/L=19,5 | 1 | 61131376460 | $0.48 | Shop at ECS Tuning | ||||
| 11 | Wiring for air conditioner | 1 | 08/1968 | 02/1977 | 61121354243 | ENDED | Shop at ECS Tuning | |||
| 11 | Wiring for air conditioner | 1 | 08/1968 | 02/1977 | 61121355050 | ENDED | Shop at ECS Tuning | |||
| 12 | Fuse | 25A | 1 | 61138760139 | $1.83 | ENDED | Shop at ECS Tuning | |||
| 13 | Fuse housing | 1 | 61138061774 | $8.76 | ENDED | Shop at ECS Tuning | ||||
| 14 | Wiring set | 1 | 61121353366 | ENDED | Shop at ECS Tuning | |||||
| 15 | Fan wheel | 1 | 64541351877 | $35.99 | ENDED | Shop at ECS Tuning |
