Air conditioning for BMW 2500-3.3Li 2800 (1970)

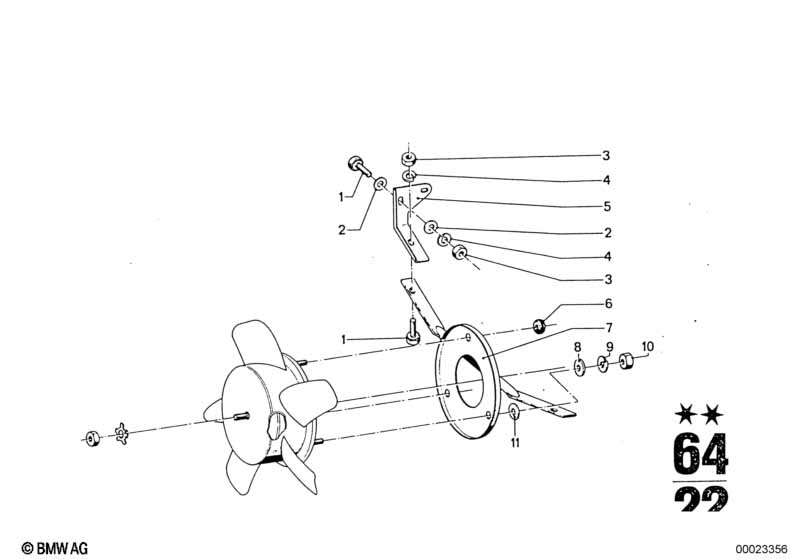

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M6X16-8.8-ZNS3 | 6 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Washer | 11 | 64541351873 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex nut | M6-8-ZNNIV SI | 6 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Spring washer | B6 | 6 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Set spring washer 50 | B4 | 3 | 07509063158 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support | 1 | 64541351869 | ENDED | Shop at ECS Tuning | |||||
| 05 | Support | 1 | 64541351870 | ENDED | Shop at ECS Tuning | |||||
| 06 | Grommet | 10,5MM | 3 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 64541351905 | ENDED | Shop at ECS Tuning | |||||
| 08 | Washer | 3 | 64541351874 | ENDED | Shop at ECS Tuning | |||||
| 09 | Spring washer | B4 | 3 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M4-A2-70 | 3 | 07119922854 | Shop at ECS Tuning | |||||
| 11 | Washer | 3 | 64541351873 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Air conditioning?
- This technical diagram illustrates the Air conditioning within the Heater and Air Conditioning group for the 2500-3.3Li 2800 produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119904357).
- Which models use the hardware listed in this Air conditioning?
- The hardware and components featured in the Air conditioning are specific to the 2500-3.3Li 2800 produced during 1970. These technical specifications ensure that parts like the Hex bolt (07119904357) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air conditioning assembly?
- Each item in the Air conditioning corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119904357 for the Heater and Air Conditioning section.
