Heater for BMW 2500-3.3Li 2800Bav (1971)

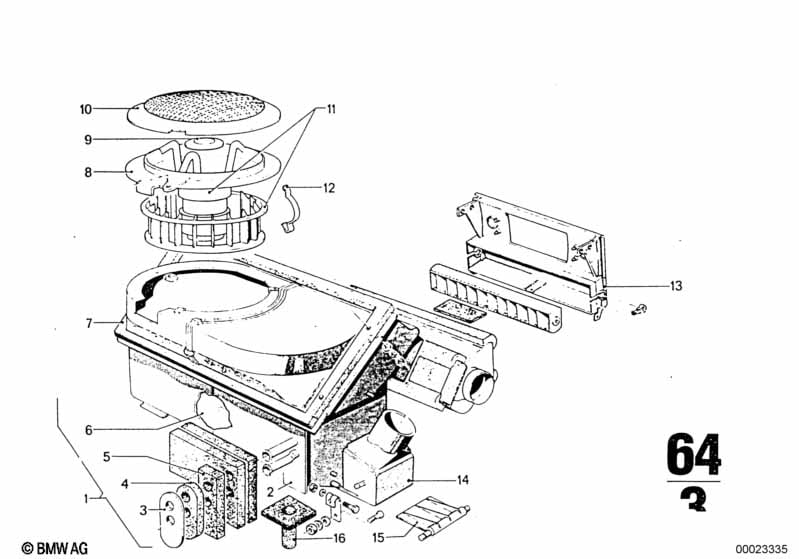

This Heater technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800Bav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Early version | ||||||||||
| 01 | Heater | 1 | 08/1968 | 09/1973 | 64111354166 | ENDED | Shop at ECS Tuning | |||
| 02 | Housing | 1 | 64111351360 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket | 1 | 64111351327 | ENDED | Shop at ECS Tuning | |||||
| 05 | Gasket | 3 | 64111356856 | $48.92 | ENDED | Shop at ECS Tuning | ||||
| 06 | Heater radiator | 1 | 64111351359 | $331.20 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sealing frame | 1 | 64111350558 | $36.38 | Shop at ECS Tuning | |||||
| 09 | Protection cap | 1 | 64111351357 | ENDED | Shop at ECS Tuning | |||||
| 09 | Covering cap | 1 | 64111356502 | ENDED | Shop at ECS Tuning | |||||
| 10 | Protection grid f additional fan | 1 | 64111351358 | ENDED | Shop at ECS Tuning | |||||
| 11 | Blower unit | 1 | 64111357890 | $297.70 | Shop at ECS Tuning | |||||
| 12 | Clamp | 4 | 64111351356 | ENDED | Shop at ECS Tuning | |||||
| 13 | Cover | 1 | 08/1968 | 02/1977 | 51161801561 | $360.47 | ENDED | Shop at ECS Tuning | ||
| 14 | Connector | LINKS | 1 | 64111351177 | ENDED | Shop at ECS Tuning | ||||
| 14 | Connector | RECHTS | 1 | 64111351178 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hose | 2 | 51731800016 | ENDED | Shop at ECS Tuning | |||||
