Pusher fan for BMW 3 Series E46 328i (2000)
This Pusher fan technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

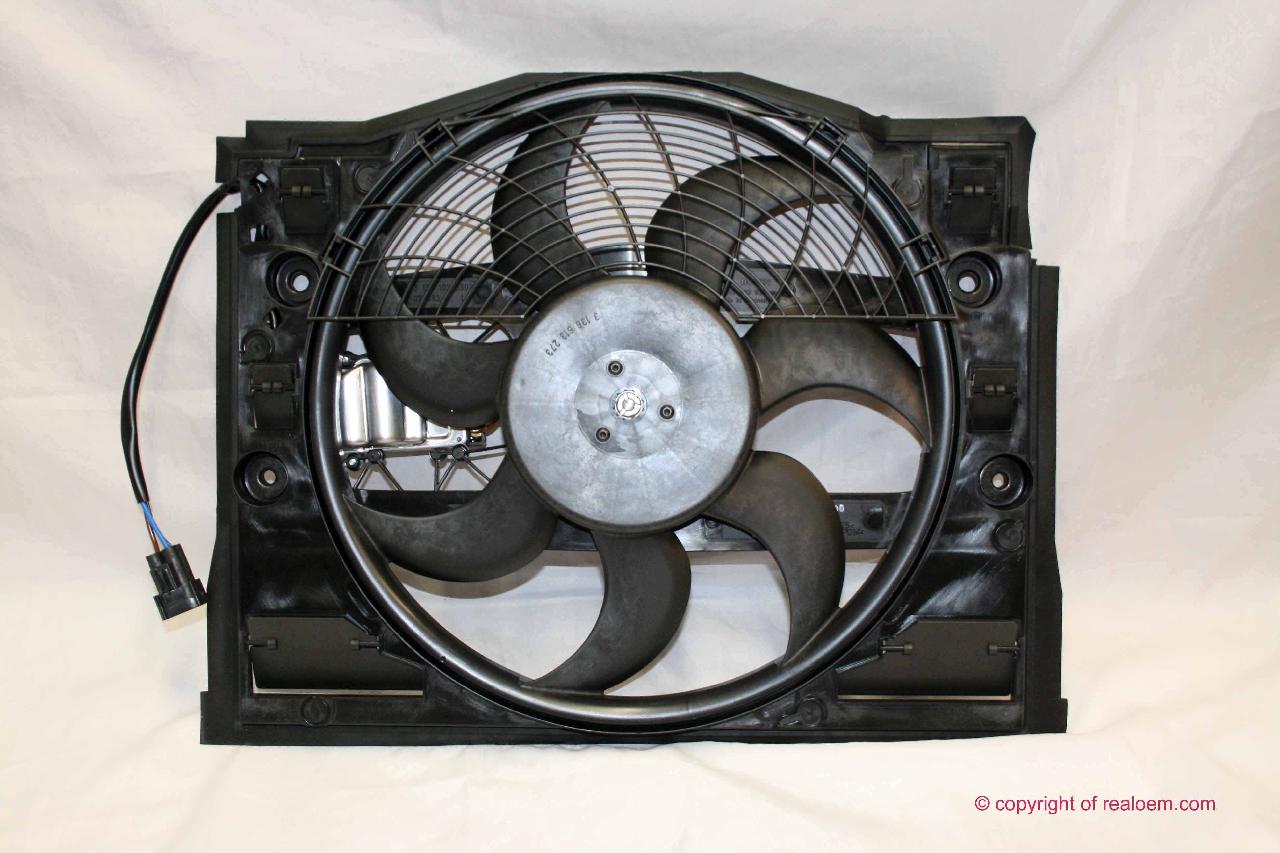

| 01 | Pusher fan | 1 | 64546988913 | $374.55 | Shop at ECS Tuning | |||||
| 02 | Compression shroud | 1 | 64546928035 | $135.96 | Shop at ECS Tuning | |||||
| 03 | Hex nut | BM8-8-ZNNIV-SI | 4 | 07129904874 | Shop at ECS Tuning | |||||
| 04 | Upper protection grid f additional fan | 1 | 64548377800 | $34.49 | Shop at ECS Tuning | |||||
| 06 | Universal socket housing uncoded | 3 POL. | 1 | 61138380380 | $4.32 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double leaf spring contact | 4,0-6,0 MM²(AG) | X | 61138377740 | Shop at ECS Tuning | |||||
| 06 | Pin terminal | 3 POL. | 1 | 61138380385 | $2.50 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flat plug 4.8x0.8 | 4,0-6,0MM² (SN) | 1 | 61138377750 | $0.48 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 328i Pusher fan?
- This technical diagram illustrates the Pusher fan within the Heater and Air Conditioning group for the 3 Series E46 328i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Pusher fan (Part #64546988913).
- Which models use the hardware listed in this Pusher fan?
- The hardware and components featured in the Pusher fan are specific to the 3 Series E46 328i produced during 2000. These technical specifications ensure that parts like the Pusher fan (64546988913) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pusher fan assembly?
- Each item in the Pusher fan corresponds to the numbered list below the illustration. For the 3 Series E46 328i, you can identify the Pusher fan by locating its position on the schematic, which then links to the official BMW part number 64546988913 for the Heater and Air Conditioning section.
