Hoses f pump and valve/autom.air cond. for BMW 5 Series E39 528i (1999)

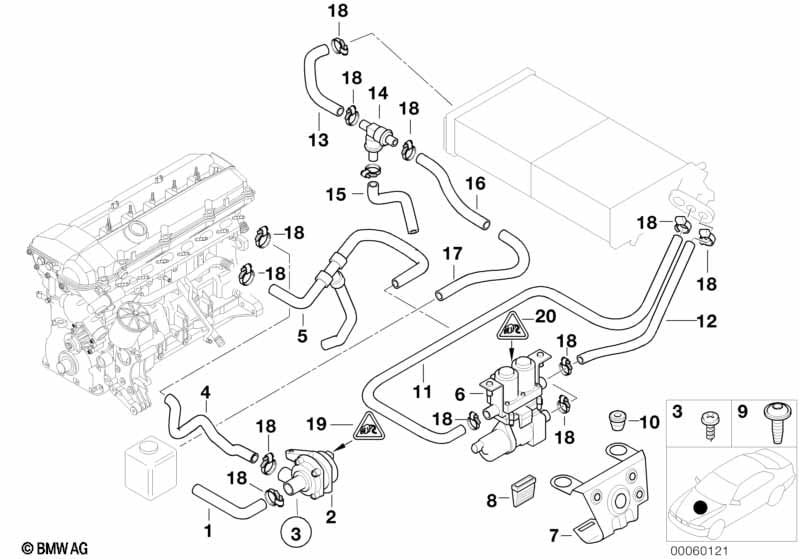

This Hoses f pump and valve/autom.air cond. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 01 | Water hose | 1 | 09/1998 | 11531438633 | $26.42 | Shop at ECS Tuning | ||||
| 02 | Additional water pump | 1 | 09/1998 | 64118381989 | $163.38 | Shop at ECS Tuning | ||||
| 03 | Self tapping screw | 6X25 | 1 | 09/1998 | 17111728723 | $1.05 | Shop at ECS Tuning | |||
| 04 | Water hose | 1 | 09/1998 | 11531438634 | $30.20 | Shop at ECS Tuning | ||||
| 05 | Hose, inlet, with branch piece | 1 | 09/1998 | 64218375524 | $35.18 | Shop at ECS Tuning | ||||
| 06 | Water valve | 1 | 09/1998 | 64128374995 | $167.82 | Shop at ECS Tuning | ||||
| 07 | Water valve bracket | 1 | 09/1998 | 64528150971 | $8.70 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 1 | 09/1998 | 17111712911 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | ISA M6X16 | 2 | 09/1998 | 51218100708 | $0.89 | Shop at ECS Tuning | |||
| 10 | Grommet | 2 | 09/1998 | 64126910076 | $1.50 | Shop at ECS Tuning | ||||
| 11 | Hose f water valve and right radiator | 1 | 09/1998 | 64218391017 | $16.16 | Shop at ECS Tuning | ||||
| 12 | Hose f water valve and left radiator | 1 | 09/1998 | 64218367929 | $9.77 | Shop at ECS Tuning | ||||
| 13 | Hose f radiator and check valve | 1 | 09/1998 | 64218375527 | $10.73 | Shop at ECS Tuning | ||||
| 14 | Double check valve | 1 | 09/1998 | 64128379872 | $70.87 | Shop at ECS Tuning | ||||
| 15 | Hose f check valve and double pipe | 1 | 09/1998 | 64218375526 | $40.89 | Shop at ECS Tuning | ||||
| 16 | Hose f check valve and engine return | 1 | 09/1998 | 64218375525 | $48.88 | Shop at ECS Tuning | ||||
| 18 | Hose clamp | L16-30 | 11 | 09/1998 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 19 | Plug housing | 2 POL. | 1 | 09/1998 | 12521732460 | $6.38 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Single conductor seal | 0,13-1,0 MM² | 1 | 09/1998 | 12521732592 | $0.38 | Shop at ECS Tuning | |||
| -- | Cable socket female | 1 | 09/1998 | 12521737771 | $0.57 | Shop at ECS Tuning | ||||
| -- | Covering cap | 1 | 09/1998 | 12511742836 | $0.78 | ENDED | Shop at ECS Tuning | |||
| 20 | Universal socket housing uncoded | 3 POL. | 1 | 09/1998 | 12/2003 | 61138365348 | $3.40 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 09/1998 | 12/2003 | 61130056384 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 09/1998 | 12/2003 | 61130056961 | Shop at ECS Tuning | |||
| 20 | Rep. kit for socket housing | 3 POL. | 1 | 09/1998 | 61132359998 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 09/1998 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 09/1998 | 61130056961 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Hoses f pump and valve/autom.air cond.?
- This technical diagram illustrates the Hoses f pump and valve/autom.air cond. within the Heater and Air Conditioning group for the 5 Series E39 528i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Water hose (Part #11531438633).
- Which models use the hardware listed in this Hoses f pump and valve/autom.air cond.?
- The hardware and components featured in the Hoses f pump and valve/autom.air cond. are specific to the 5 Series E39 528i produced during 1999. These technical specifications ensure that parts like the Water hose (11531438633) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hoses f pump and valve/autom.air cond. assembly?
- Each item in the Hoses f pump and valve/autom.air cond. corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Water hose by locating its position on the schematic, which then links to the official BMW part number 11531438633 for the Heater and Air Conditioning section.
