Water valve/Water hose for BMW 5 Series E39 528i (2000)

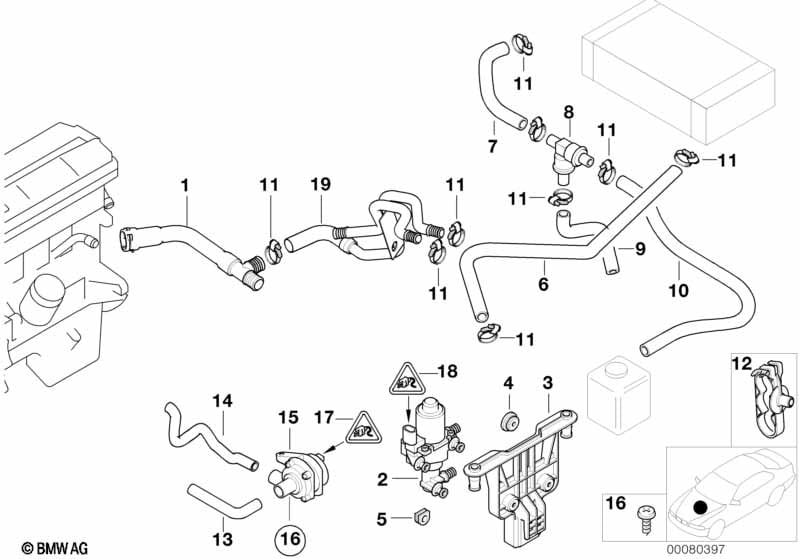

This Water valve/Water hose technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| 01 | Hose, inlet, with branch piece | 1 | 09/1998 | 64218375524 | $35.18 | Shop at ECS Tuning | ||||
| 02 | Water valve | 1 | 09/1998 | 64118369805 | $82.22 | Shop at ECS Tuning | ||||
| 03 | Water valve bracket | 1 | 09/1998 | 64118379920 | $22.28 | ENDED | Shop at ECS Tuning | |||
| 04 | Rubber Mounting | 1 | 09/1998 | 64118391475 | $1.03 | Shop at ECS Tuning | ||||
| 05 | Grommet | 2 | 09/1998 | 64126910076 | $1.50 | Shop at ECS Tuning | ||||
| 06 | Hose f water valve and radiator | 1 | 09/1998 | 64218385294 | $16.16 | Shop at ECS Tuning | ||||
| 07 | Hose f radiator and check valve | 1 | 09/1998 | 64218375527 | $10.73 | Shop at ECS Tuning | ||||
| 08 | Double check valve | 1 | 09/1998 | 64128379872 | $70.87 | Shop at ECS Tuning | ||||
| 09 | Hose f check valve and double pipe | 1 | 09/1998 | 64218375526 | $40.89 | Shop at ECS Tuning | ||||
| 10 | Hose f check valve and engine return | 1 | 09/1998 | 64218375525 | $48.88 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L16-30 | 10 | 09/1998 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 12 | Hose clamp, inlet | 1 | 09/1998 | 64118363051 | $1.42 | Shop at ECS Tuning | ||||
| 13 | Water hose | 1 | 09/1998 | 11531438634 | $30.20 | Shop at ECS Tuning | ||||
| 14 | Water hose | 1 | 09/1998 | 11531438633 | $26.42 | Shop at ECS Tuning | ||||
| 15 | Additional water pump | 1 | 09/1998 | 64118381989 | $163.38 | Shop at ECS Tuning | ||||
| 16 | Self tapping screw | 6X25 | 1 | 09/1998 | 17111728723 | $1.05 | Shop at ECS Tuning | |||
| 17 | Plug housing | 2 POL. | 1 | 09/1998 | 12521732460 | $6.38 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Single conductor seal | 0,13-1,0 MM² | 2 | 09/1998 | 12521732592 | $0.38 | Shop at ECS Tuning | |||
| -- | Cable socket female | 2 | 09/1998 | 12521737771 | $0.57 | Shop at ECS Tuning | ||||
| -- | Covering cap | 1 | 09/1998 | 12511742836 | $0.78 | ENDED | Shop at ECS Tuning | |||
| 18 | Universal socket housing uncoded | 2 POL. | 1 | 09/1998 | 12/2003 | 61138795954 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 09/1998 | 12/2003 | 61130056384 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 09/1998 | 12/2003 | 61130056961 | Shop at ECS Tuning | |||
| 18 | Rep. kit for socket housing | 2 POL. | 1 | 09/1998 | 61132359999 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 09/1998 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 09/1998 | 61130056961 | Shop at ECS Tuning | ||||
| 19 | Double Pipe 2 | 1 | 09/1998 | 64128379343 | $135.65 | Shop at ECS Tuning | ||||
