Coolant lines for BMW 7 Series E38 730d (2001)

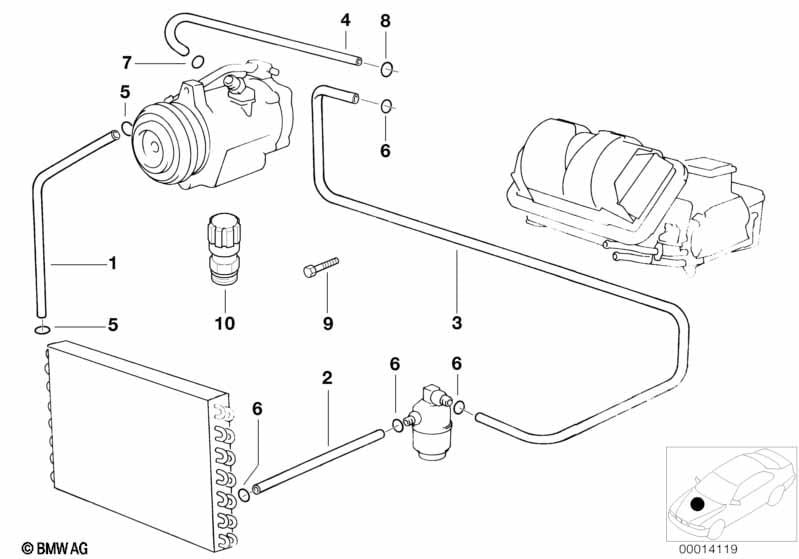

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy compressor-condenser | 1 | 64538378797 | ENDED | Shop at ECS Tuning | |||||
| 02 | Condenser-dryer pressure hose assy | 1 | 64538378480 | $52.22 | +core | Shop at ECS Tuning | ||||
| 03 | Dryer-evaporator pressure hose assy | 1 | 64538378476 | $181.40 | +core | Shop at ECS Tuning | ||||
| 04 | Suction pipe evaporator-compressor | 1 | 64538385780 | Shop at ECS Tuning | ||||||
| 05 | Gasket ring | D=10,8 MM | 2 | 09/1997 | 64508375741 | $2.04 | Shop at ECS Tuning | |||
| 06 | Gasket ring | 9,5X2,5 | 4 | 09/1997 | 64508374959 | $2.69 | Shop at ECS Tuning | |||
| 07 | Gasket ring | D=23 MM | 1 | 09/1997 | 64508363041 | $1.22 | Shop at ECS Tuning | |||
| 08 | Gasket ring | D=13,7 MM | 1 | 09/1997 | 64538375742 | $1.93 | Shop at ECS Tuning | |||
| 09 | Fillister-head screw | M8X25 | 10 | 09/1997 | 07119901024 | $0.58 | ENDED | Shop at ECS Tuning | ||
| 09 | ISA screw | M8X25-10.9-ZNS3 | 10 | 09/1997 | 07129904477 | $2.00 | Shop at ECS Tuning | |||
| 10 | Valve insert, pressure line | R134A | 1 | 09/1997 | 08/2003 | 64538391215 | $9.32 | ENDED | Shop at ECS Tuning | |
| 10 | Valve insert, pressure line | R134A | 1 | 09/1997 | 64509177577 | $10.87 | Shop at ECS Tuning | |||
| 10 | Valve insert, suction line | R134A | 1 | 09/1997 | 64509177579 | $10.87 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
