RP A/C compressor for BMW 8 Series E31 850Ci (1994)

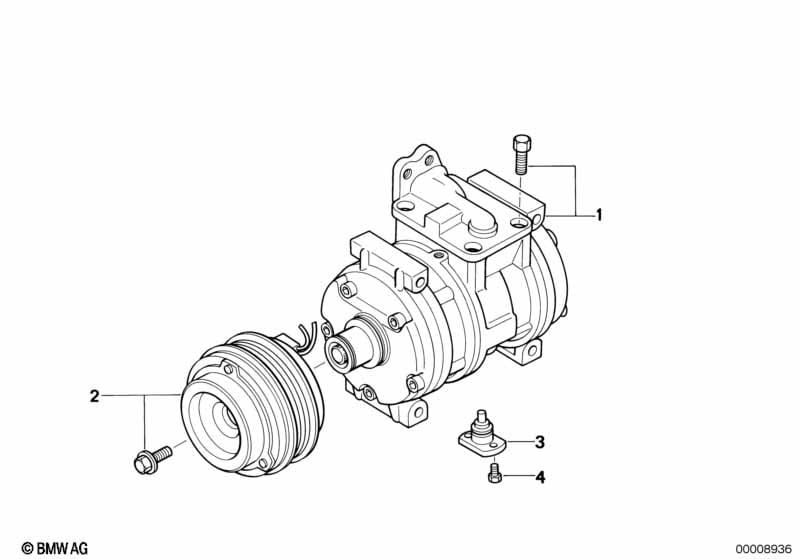

This RP A/C compressor technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air conditioning compressor | R134A | 1 | 09/1992 | 64528385910 | $799.24 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Ribbed v-belt | 5K X 1180 | 1 | 09/1992 | 11281736999 | $30.16 | Shop at ECS Tuning | |||
| ALSO FOR ADDITIONAL ALTERNATOR | ||||||||||
| 02 | Magnetic clutch | 1 | 64528350058 | $470.17 | ENDED | Shop at ECS Tuning | ||||
| 03 | Switch | 1 | 64521392744 | $118.15 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | 2 | 64521382783 | $0.35 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci RP A/C compressor?
- This technical diagram illustrates the RP A/C compressor within the Heater and Air Conditioning group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Air conditioning compressor (Part #64528385910).
- Which models use the hardware listed in this RP A/C compressor?
- The hardware and components featured in the RP A/C compressor are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Air conditioning compressor (64528385910) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the RP A/C compressor assembly?
- Each item in the RP A/C compressor corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Air conditioning compressor by locating its position on the schematic, which then links to the official BMW part number 64528385910 for the Heater and Air Conditioning section.
