Housing parts - air conditioning for BMW 5 Series E39 523i (2000)

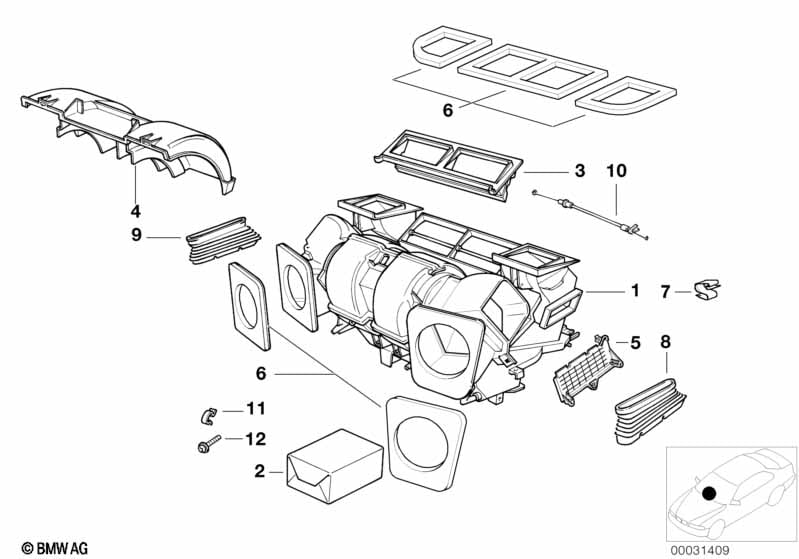

This Housing parts - air conditioning technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty housing f heater/air condit.unit | 1 | 09/1998 | 64118382303 | $533.80 | Shop at ECS Tuning | ||||
| 02 | Set of small parts adjust.lever | 1 | 09/1998 | 64116909815 | $25.93 | Shop at ECS Tuning | ||||
| 03 | Air channel | 1 | 09/1998 | 64118385683 | $32.22 | Shop at ECS Tuning | ||||
| 04 | Covr blower | 1 | 09/1998 | 64118385677 | $11.65 | Shop at ECS Tuning | ||||
| 05 | Heater radiator cover | 1 | 09/1998 | 64118385688 | $15.18 | ENDED | Shop at ECS Tuning | |||
| 06 | Sealing frame | 1 | 09/1998 | 64116909816 | $36.73 | Shop at ECS Tuning | ||||
| 07 | Clamp | 2 | 09/1998 | 64118385678 | $0.68 | Shop at ECS Tuning | ||||
| 08 | Rear left heater duct grommet | 1 | 09/1998 | 64118391127 | $4.42 | Shop at ECS Tuning | ||||
| 09 | Rear right heater duct grommet | 1 | 09/1998 | 64118391128 | $4.42 | Shop at ECS Tuning | ||||
| 10 | Bowden cable leg-room | 1 | 09/1998 | 64118382310 | $14.28 | Shop at ECS Tuning | ||||
| 10 | Bowden cable air refreshing | 1 | 09/1998 | 64118382311 | $14.28 | Shop at ECS Tuning | ||||
| 10 | Bowden cable defroster | 1 | 09/1998 | 64118382319 | $14.72 | Shop at ECS Tuning | ||||
| 11 | Clamp | 20 | 09/1998 | 64118385679 | $0.48 | Shop at ECS Tuning | ||||
| 12 | Screw | 20 | 09/1998 | 64118385681 | $0.23 | ENDED | Shop at ECS Tuning |
