Heater radiator air conditioning for BMW 5 Series E39 528i (2000)

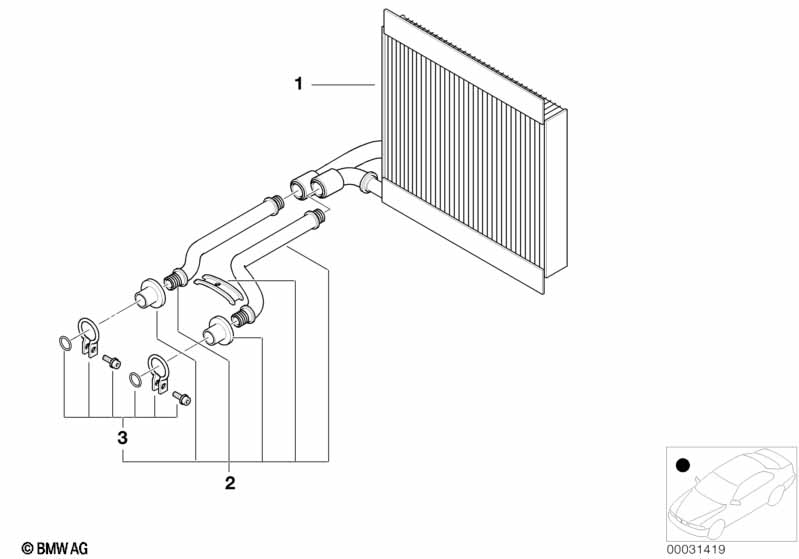

This Heater radiator air conditioning technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator | 1 | 09/1998 | 64118385689 | $200.33 | Shop at ECS Tuning | ||||
| 02 | Set pipe | 1 | 09/1998 | 64118382304 | $36.88 | Shop at ECS Tuning | ||||
| 03 | O-ring set | 1 | 09/1998 | 64118385686 | $4.75 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Heater radiator air conditioning?
- This technical diagram illustrates the Heater radiator air conditioning within the Heater and Air Conditioning group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Heater radiator (Part #64118385689).
- Which models use the hardware listed in this Heater radiator air conditioning?
- The hardware and components featured in the Heater radiator air conditioning are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Heater radiator (64118385689) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater radiator air conditioning assembly?
- Each item in the Heater radiator air conditioning corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Heater radiator by locating its position on the schematic, which then links to the official BMW part number 64118385689 for the Heater and Air Conditioning section.
