Evaporator / Expansion valve for BMW 5 Series E39 525d (2003)

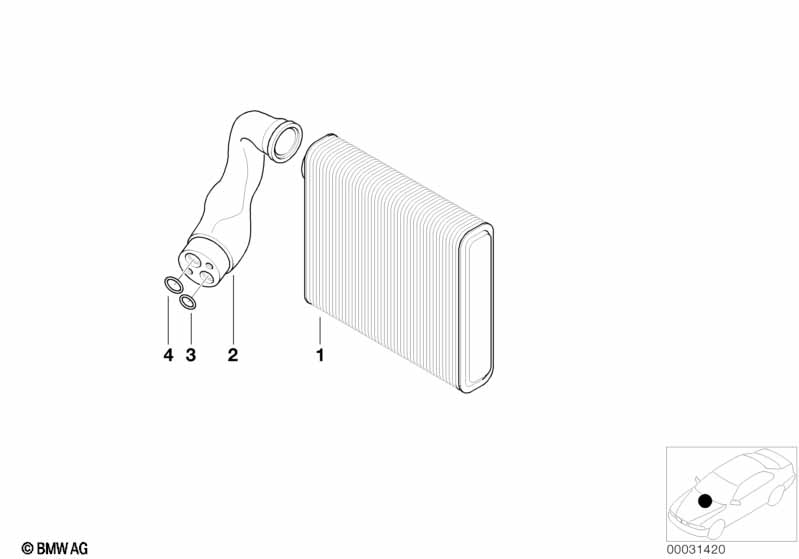

This Evaporator / Expansion valve technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic air conditioning |
S534A=No |
|||||||||
| 01 | Evaporator | 1 | 64118385690 | $475.21 | Shop at ECS Tuning | |||||
| 02 | Double pipe with expansion valve | 1 | 64119150687 | $264.83 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | D=10,8 MM | 1 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | D=13,7 MM | 1 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525d Evaporator / Expansion valve?
- This technical diagram illustrates the Evaporator / Expansion valve within the Heater and Air Conditioning group for the 5 Series E39 525d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Evaporator (Part #64118385690).
- Which models use the hardware listed in this Evaporator / Expansion valve?
- The hardware and components featured in the Evaporator / Expansion valve are specific to the 5 Series E39 525d produced during 2003. These technical specifications ensure that parts like the Evaporator (64118385690) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Evaporator / Expansion valve assembly?
- Each item in the Evaporator / Expansion valve corresponds to the numbered list below the illustration. For the 5 Series E39 525d, you can identify the Evaporator by locating its position on the schematic, which then links to the official BMW part number 64118385690 for the Heater and Air Conditioning section.
