Water valve/Water hose for BMW 5 Series E39 525d (2003)

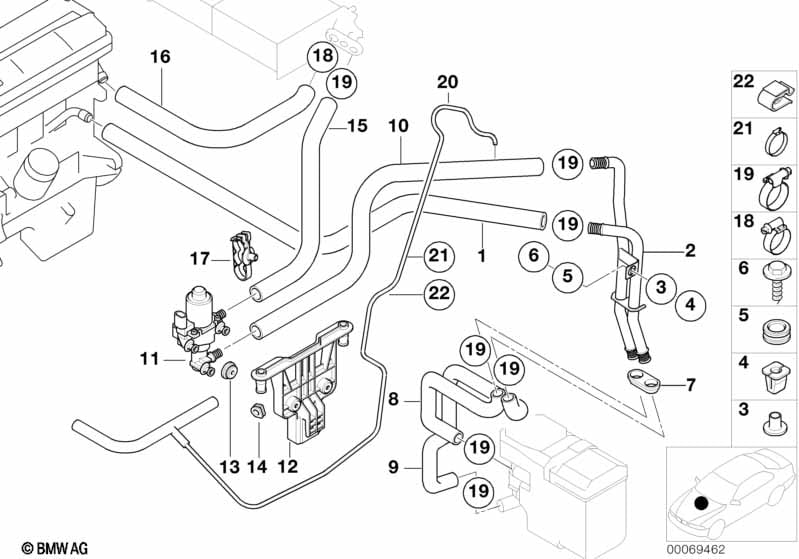

This Water valve/Water hose technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose f engine inlet and double pipe | 1 | 64218378952 | $47.23 | Shop at ECS Tuning | |||||
| 02 | Double pipe 1 | 1 | 64126916537 | $69.62 | Shop at ECS Tuning | |||||
| 03 | Bush | 1 | 64128375279 | Shop at ECS Tuning | ||||||
| 04 | Expanding nut | ST 6.3 | 1 | 51718259474 | Shop at ECS Tuning | |||||
| 05 | Grommet | 1 | 64128374551 | $1.98 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | 1 | 64128259473 | Shop at ECS Tuning | ||||||
| 07 | Grommet | 1 | 64128368258 | $6.53 | Shop at ECS Tuning | |||||
| 08 | Hose f additional heater and double pipe | 1 | 64218379340 | Shop at ECS Tuning | ||||||
| 09 | Hose f double pipe and additional heater | 1 | 64218379341 | Shop at ECS Tuning | ||||||
| 10 | Hose f double pipe and water valve | 1 | 64218378951 | Shop at ECS Tuning | ||||||
| 11 | Water valve | 1 | 64118369805 | $82.22 | Shop at ECS Tuning | |||||
| 12 | Water valve bracket | 1 | 64118379920 | $22.28 | ENDED | Shop at ECS Tuning | ||||
| 13 | Rubber Mounting | 2 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 14 | Grommet | 2 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 15 | Hose f water valve and radiator | 1 | 64218385294 | $16.16 | Shop at ECS Tuning | |||||
| 16 | Hose f radiator and engine return | 1 | 64218378953 | Shop at ECS Tuning | ||||||
| 17 | Hose clamp, inlet | 1 | 64118363051 | $1.42 | Shop at ECS Tuning | |||||
| 18 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 19 | Hose clamp | L18-24 | 7 | 07129952109 | $1.07 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525d Water valve/Water hose?
- This technical diagram illustrates the Water valve/Water hose within the Heater and Air Conditioning group for the 5 Series E39 525d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Hose f engine inlet and double pipe (Part #64218378952).
- Which models use the hardware listed in this Water valve/Water hose?
- The hardware and components featured in the Water valve/Water hose are specific to the 5 Series E39 525d produced during 2003. These technical specifications ensure that parts like the Hose f engine inlet and double pipe (64218378952) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Water valve/Water hose assembly?
- Each item in the Water valve/Water hose corresponds to the numbered list below the illustration. For the 5 Series E39 525d, you can identify the Hose f engine inlet and double pipe by locating its position on the schematic, which then links to the official BMW part number 64218378952 for the Heater and Air Conditioning section.
