Additional heater for BMW 5 Series E39 525d (2003)

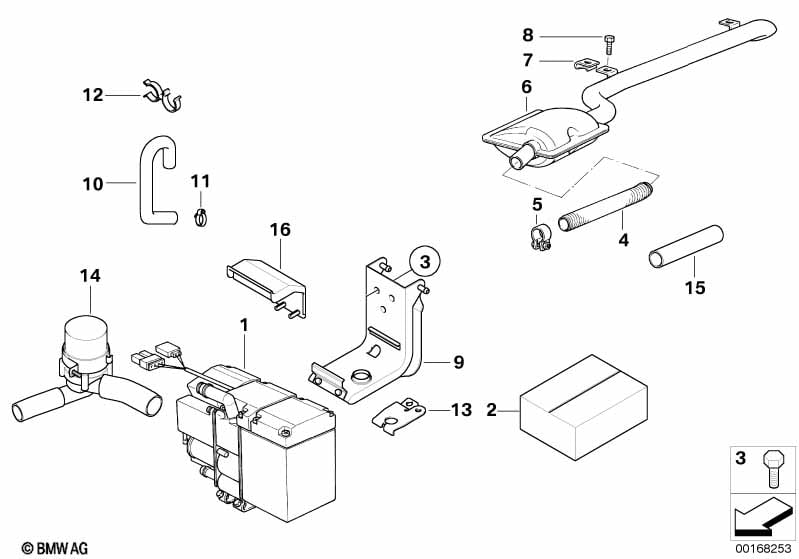

This Additional heater technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Additional heater | 1 | 64126918455 | $1233.18 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Exhaust seal, auxiliary heater | 1 | 64126906740 | Shop at ECS Tuning | ||||||
| 02 | Repair kit, auxiliary heater, diesel | 1 | 64129145099 | Shop at ECS Tuning | ||||||
| COMPRISES Molded hose Sealing kit for auxiliary heater Screw set Burner insert for auxiliary heater |
||||||||||
| 03 | Hex bolt | 3 | 64128376447 | Shop at ECS Tuning | ||||||
| 04 | Exhaust pipe | 1 | 64128391425 | Shop at ECS Tuning | ||||||
| 05 | Pipe clamp | 1 | 64128351076 | Shop at ECS Tuning | ||||||
| 06 | Muffler | 1 | 09/1998 | 64128386352 | Shop at ECS Tuning | |||||
| 07 | Body nut | D=18MM, ZNS-3 | 1 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Bracket f additional heater | 1 | 64128378387 | Shop at ECS Tuning | ||||||
| 10 | Air intake hose | 1 | 64216900283 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hose clamp | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 13 | Counter bracket with exhaust gasket | 1 | 64126906767 | Shop at ECS Tuning | ||||||
| 14 | Water pump f Independent heater | 1 | 09/1998 | 64126918940 | Shop at ECS Tuning | |||||
| 15 | Insulating hose | 1 | 64126901234 | ENDED | Shop at ECS Tuning | |||||
| 16 | Covering cap | 1 | 64126925213 | Shop at ECS Tuning | ||||||
