Water circulation of Independent heater for BMW 7 Series E38 730d (2001)

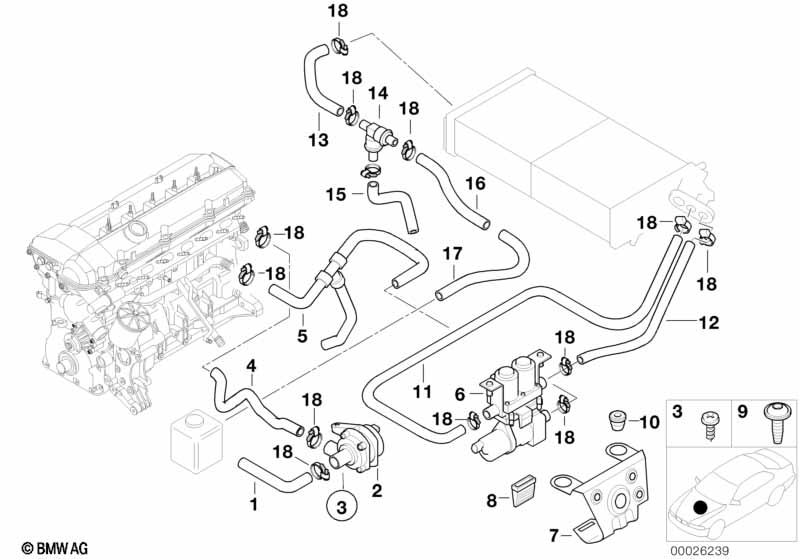

This Water circulation of Independent heater technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose f engine inlet and double pipe/pump | 1 | 64218386348 | Shop at ECS Tuning | ||||||
| 06 | Water valve with additional water pump | 1 | 64118374994 | $365.51 | Shop at ECS Tuning | |||||
| 11 | Hose f water valve and right radiator | 1 | 64218371386 | $14.84 | Shop at ECS Tuning | |||||
| 12 | Hose f water valve and left radiator | 1 | 64218391122 | $9.77 | Shop at ECS Tuning | |||||
| 13 | Hose f radiator and check valve | 1 | 64218386351 | Shop at ECS Tuning | ||||||
| 14 | Double check valve | 1 | 64128379872 | $70.87 | Shop at ECS Tuning | |||||
| 15 | Hose f double pipe and check valve | 1 | 64218386350 | Shop at ECS Tuning | ||||||
| 16 | Hose f check valve and engine return | 1 | 64218386349 | Shop at ECS Tuning | ||||||
| 16 | Hose f radiator and check valve | 1 | 64218386351 | Shop at ECS Tuning | ||||||
| 18 | Hose clamp | L16-30 | X | 64218367179 | $1.07 | Shop at ECS Tuning |
