Electric parts f automatic air condition for BMW 5 Series E39 525d (2003)

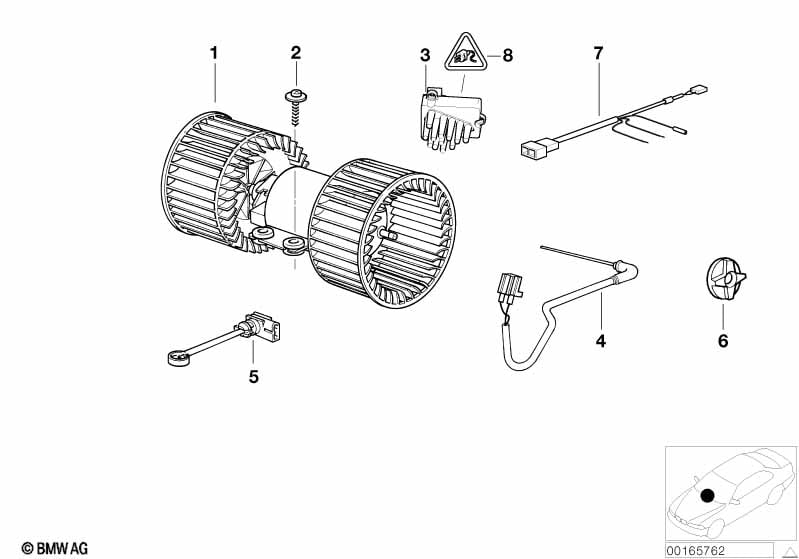

This Electric parts f automatic air condition technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 01 | Blower unit | 1 | 03/2000 | 64118385558 | $205.37 | Shop at ECS Tuning | ||||
| 02 | Screw | 1 | 64118391922 | $1.28 | Shop at ECS Tuning | |||||

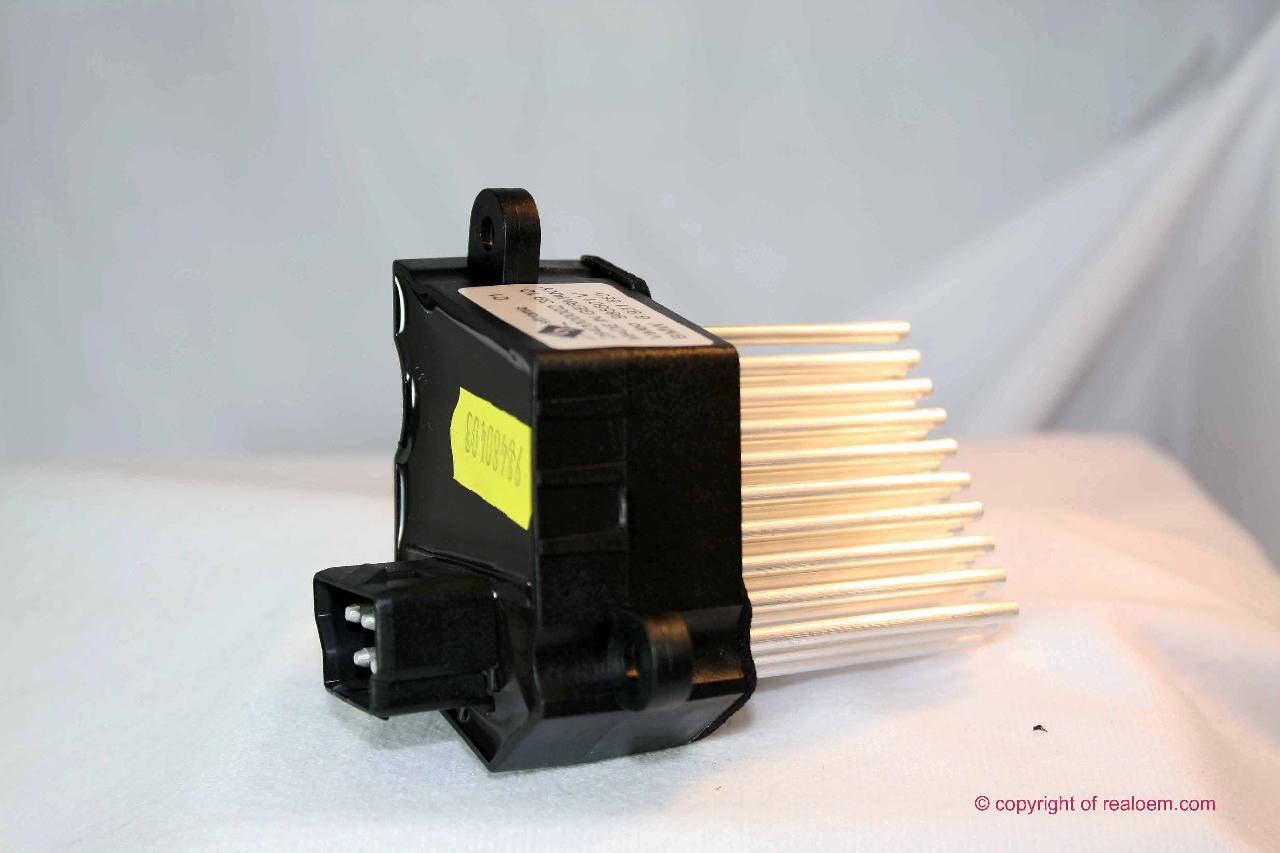

| 03 | Final Stage Unit | 1 | 64116923204 | $117.73 | Shop at ECS Tuning | |||||
| 04 | Evaporator temperature sensor | 1 | 03/2000 | 64118385563 | $33.45 | Shop at ECS Tuning | ||||
| 05 | Temperature sensor, heater | 2 | 64118391392 | $33.45 | Shop at ECS Tuning | |||||
| 06 | Rubber grommet | 1 | 64511377494 | $6.63 | Shop at ECS Tuning | |||||
| 07 | Set of cables for auto. air conditioning | 1 | 03/2000 | 64118385553 | $249.70 | Shop at ECS Tuning | ||||
| only applies to Blower, rear compartment |
||||||||||
| 07 | Set of cables for auto. air conditioning | 1 | 03/2000 | 64118385554 | $122.47 | ENDED | Shop at ECS Tuning | |||
| 08 | Socket housing | 5 POL. | 1 | 61138377762 | $1.52 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 | 2,5-4,0MM² | 5 | 61131376206 | $0.98 | Shop at ECS Tuning | ||||
