Heater radiator automatic air condition for BMW 5 Series E39 528i (2000)

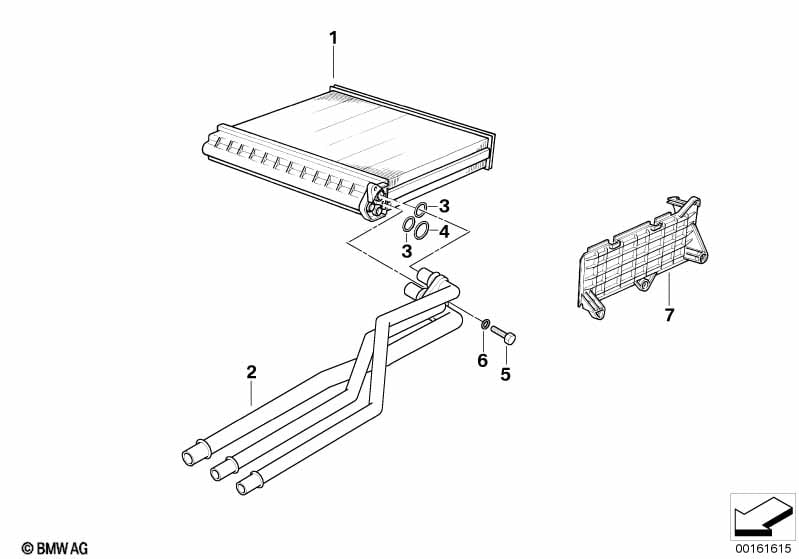

This Heater radiator automatic air condition technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator automatic air condition | 1 | 03/2000 | 64118385562 | $216.22 | Shop at ECS Tuning | ||||
| 02 | TRIPLE PIPE F HEATER RADIATOR, aluminium | 1 | 03/2000 | 64118385564 | $78.33 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=13,98MM | 2 | 64111374238 | $1.82 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | D=17.12MM | 1 | 64118377824 | $1.82 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M5X20-8.8 ZNS | 1 | 07119913116 | $1.20 | Shop at ECS Tuning | ||||
| 06 | Spring washer | B5 | 1 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Heater radiator cover | 1 | 64118363783 | $8.32 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Heater radiator automatic air condition?
- This technical diagram illustrates the Heater radiator automatic air condition within the Heater and Air Conditioning group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Heater radiator automatic air condition (Part #64118385562).
- Which models use the hardware listed in this Heater radiator automatic air condition?
- The hardware and components featured in the Heater radiator automatic air condition are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Heater radiator automatic air condition (64118385562) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater radiator automatic air condition assembly?
- Each item in the Heater radiator automatic air condition corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Heater radiator automatic air condition by locating its position on the schematic, which then links to the official BMW part number 64118385562 for the Heater and Air Conditioning section.
