Water valve/Water hose for BMW 7 Series E38 740d (2001)

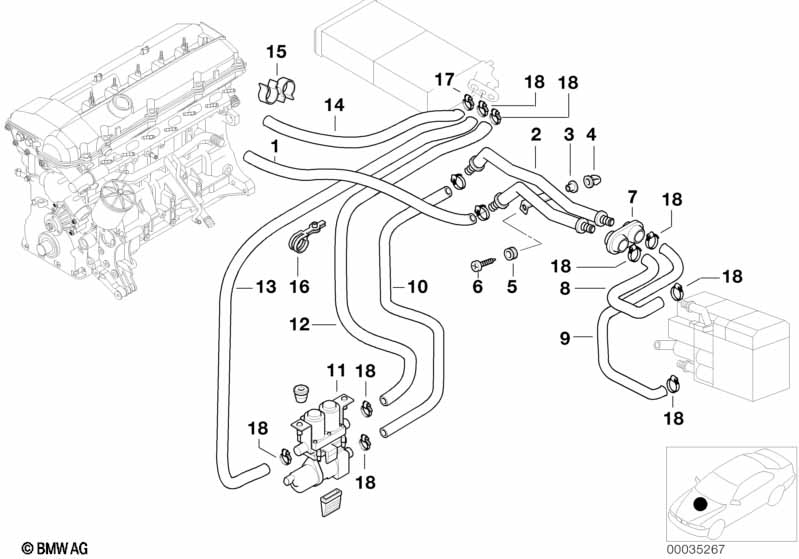

This Water valve/Water hose technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pipe, supply line | 1 | 64126902872 | ENDED | Shop at ECS Tuning | |||||
| 01 | Hose f engine inlet and double pipe | 1 | 64216902875 | Shop at ECS Tuning | ||||||
| 02 | Double pipe | 1 | 64126902873 | Shop at ECS Tuning | ||||||
| 03 | Bush | 1 | 64128375279 | Shop at ECS Tuning | ||||||
| 04 | Expanding nut | ST 6.3 | 1 | 51718259474 | Shop at ECS Tuning | |||||
| 05 | Grommet | 1 | 64128374551 | $1.98 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | 1 | 64128259473 | Shop at ECS Tuning | ||||||
| 07 | Grommet | 1 | 64128368258 | $6.53 | Shop at ECS Tuning | |||||
| 08 | Hose | 1 | 64218375872 | Shop at ECS Tuning | ||||||
| 09 | Hose | 1 | 64218375876 | Shop at ECS Tuning | ||||||
| 10 | Hose f double pipe and water valve | 1 | 64216902876 | Shop at ECS Tuning | ||||||
| 11 | Water valve | 1 | 64128374995 | $167.82 | Shop at ECS Tuning | |||||
| 12 | Hose f water valve and right radiator | 1 | 64216901251 | Shop at ECS Tuning | ||||||
| 13 | Hose f water valve and left radiator | 1 | 64216901252 | Shop at ECS Tuning | ||||||
| 14 | Hose f radiator and engine return | 1 | 64218380250 | Shop at ECS Tuning | ||||||
| 15 | Hose clamp | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 16 | Hose clamp, inlet | 1 | 64118363051 | $1.42 | Shop at ECS Tuning | |||||
| 17 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 18 | Hose clamp | L18-24 | 7 | 07129952109 | $1.07 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740d Water valve/Water hose?
- This technical diagram illustrates the Water valve/Water hose within the Heater and Air Conditioning group for the 7 Series E38 740d produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Coolant pipe, supply line (Part #64126902872).
- Which models use the hardware listed in this Water valve/Water hose?
- The hardware and components featured in the Water valve/Water hose are specific to the 7 Series E38 740d produced during 2001. These technical specifications ensure that parts like the Coolant pipe, supply line (64126902872) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Water valve/Water hose assembly?
- Each item in the Water valve/Water hose corresponds to the numbered list below the illustration. For the 7 Series E38 740d, you can identify the Coolant pipe, supply line by locating its position on the schematic, which then links to the official BMW part number 64126902872 for the Heater and Air Conditioning section.
