water hoses/water valve for BMW 3 Series E46 318d (2005)

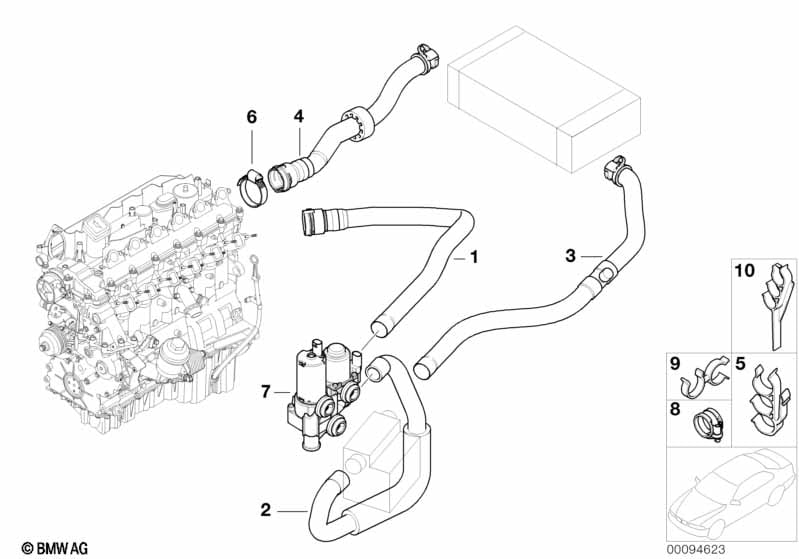

This water hoses/water valve technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose f engine inlet and addit.water pump | 1 | 09/2001 | 64216905941 | Shop at ECS Tuning | |||||
| 02 | Hose,water valve and electr.flow heater | 1 | 09/2001 | 64216905942 | Shop at ECS Tuning | |||||
| 03 | Hose,flow heater el.and heater radiator | 1 | 09/2001 | 64216905943 | Shop at ECS Tuning | |||||
| 04 | Water hose | 1 | 11537787405 | +core | Shop at ECS Tuning | |||||
| 05 | Hose clamp | 1 | 09/2001 | 64218386477 | $1.28 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L16-30 | 1 | 09/2001 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 07 | Additional water pump | 1 | 09/2001 | 64118369806 | $163.38 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning or Automatic air conditioning |
S530A=Yes S534A=Yes |
|||||||||
| 07 | Water valve with additional water pump | 1 | 09/2001 | 64118369807 | $248.88 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | 1 | 09/2001 | 64216911339 | $2.97 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning and Automatic air conditioning |
S530A=No S534A=No |
|||||||||
| 09 | Hose clamp | 1 | 09/2001 | 11722241129 | $2.30 | Shop at ECS Tuning | ||||
| 10 | Hose clamp, triple | 1 | 09/2001 | 64216918537 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
