Flow heater electr. for BMW 3 Series E46 330d (2004)

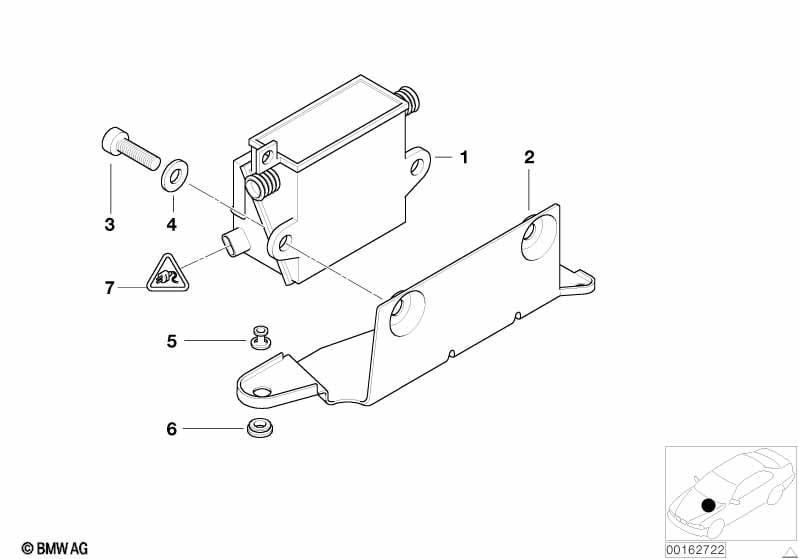

This Flow heater electr. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electric auxiliary heater | 1 | 64129145439 | Shop at ECS Tuning | ||||||
| 02 | Holder | 1 | 64126904673 | Shop at ECS Tuning | ||||||
| 03 | Fillister-head screw | M6X20 | 2 | 07119901473 | $1.54 | Shop at ECS Tuning | ||||
| 04 | Washer | 6,4X15X3-ZNS3 | 2 | 46611453999 | $2.54 | Shop at ECS Tuning | ||||
| 05 | Bracket, rubber grommet | 3 | 64128385151 | ENDED | Shop at ECS Tuning | |||||
| 06 | Rubber grommet | 4 | 64128364482 | $1.82 | Shop at ECS Tuning | |||||
| 07 | Universal socket housing uncoded | 2 POL. | 1 | 08/2006 | 61138795954 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 08/2006 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 08/2006 | 61130056961 | Shop at ECS Tuning | ||||
| 07 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 61130056961 | Shop at ECS Tuning | |||||
