Actuator for automatic air condition for BMW 5 Series E39 525d (2003)

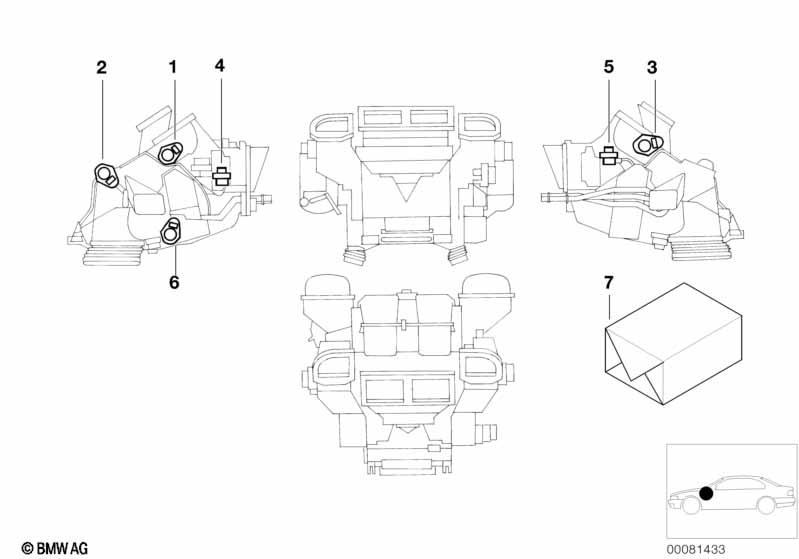

This Actuator for automatic air condition technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuator defroster flaps | 1 | 03/2000 | 64116935442 | $96.83 | Shop at ECS Tuning | ||||
| 02 | Actuator foot room flaps | 1 | 03/2000 | 64116935440 | $96.83 | Shop at ECS Tuning | ||||
| 03 | Actuator for ventilation flap | 1 | 03/2000 | 64116935444 | $96.83 | Shop at ECS Tuning | ||||
| 04 | Actuator ram pressure flap | 1 | 03/2000 | 64116935443 | $96.83 | Shop at ECS Tuning | ||||
| 05 | Actuator air recycling flap | 1 | 03/2000 | 64118385556 | $82.13 | Shop at ECS Tuning | ||||
| 06 | Actuator rear room flap | 1 | 03/2000 | 64116935441 | $96.83 | Shop at ECS Tuning | ||||
| 07 | Set of small parts adjust.lever | SIEMENS/VALEO | 1 | 03/2000 | 64118363780 | $125.82 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525d Actuator for automatic air condition?
- This technical diagram illustrates the Actuator for automatic air condition within the Heater and Air Conditioning group for the 5 Series E39 525d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Actuator defroster flaps (Part #64116935442).
- Which models use the hardware listed in this Actuator for automatic air condition?
- The hardware and components featured in the Actuator for automatic air condition are specific to the 5 Series E39 525d produced during 2003. These technical specifications ensure that parts like the Actuator defroster flaps (64116935442) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Actuator for automatic air condition assembly?
- Each item in the Actuator for automatic air condition corresponds to the numbered list below the illustration. For the 5 Series E39 525d, you can identify the Actuator defroster flaps by locating its position on the schematic, which then links to the official BMW part number 64116935442 for the Heater and Air Conditioning section.
