Climate compressor supporting bracket for BMW 3 Series E46 320d (2002)

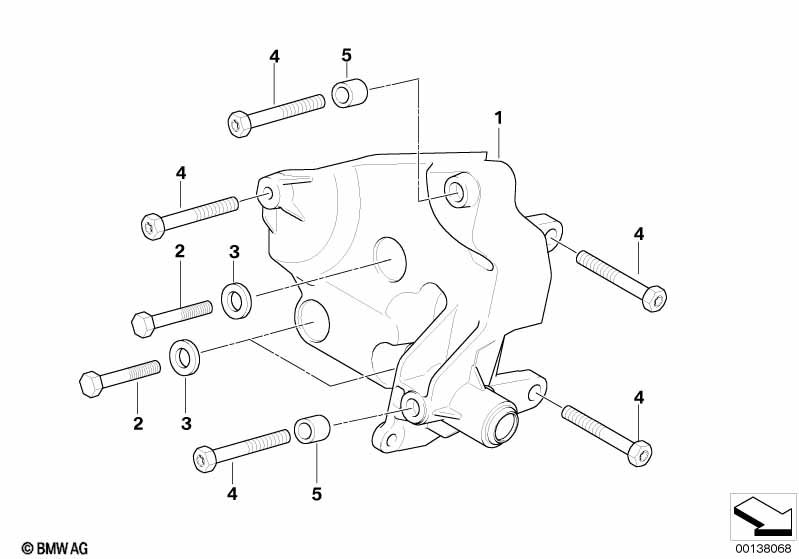

This Climate compressor supporting bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Climate compressor supporting bracket | 1 | 09/2001 | 09/2004 | 64557787319 | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X55-U1 | 3 | 09/2001 | 07119905391 | $1.27 | Shop at ECS Tuning | |||
| 03 | Washer | 8,4X18X2MM | 3 | 09/2001 | 01/2007 | 07149180923 | Shop at ECS Tuning | |||
| 03 | Washer | 8,4X16X1,6-ZNNV | 3 | 09/2001 | 07119907030 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X25-8.8-ZNNIV | 5 | 09/2001 | 07119905394 | $0.64 | Shop at ECS Tuning | |||
| 05 | Dowel | D=11,1MM | 2 | 09/2001 | 11121726245 | $1.62 | Shop at ECS Tuning |
