Coolant lines, rear air conditioning for BMW 7 Series E66 760Li (2008)

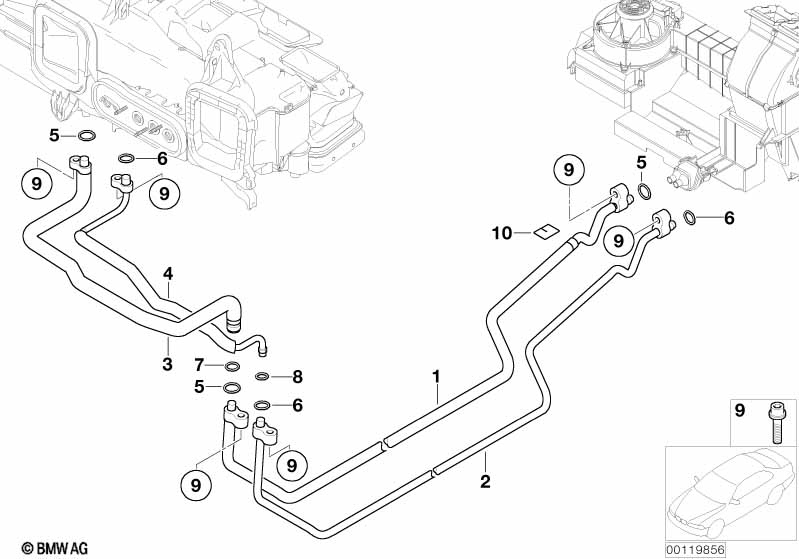

This Coolant lines, rear air conditioning technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suction pipe | 1 | 64538385653 | $245.90 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pressure hose assy | 1 | 64538385654 | $179.13 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 9,5X2,5 | 2 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | D=14MM | 1 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 09 | Fillister head with washer | M8X30-U1-ZNS3 | 4 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 760Li Coolant lines, rear air conditioning?
- This technical diagram illustrates the Coolant lines, rear air conditioning within the Heater and Air Conditioning group for the 7 Series E66 760Li produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Suction pipe (Part #64538385653).
- Which models use the hardware listed in this Coolant lines, rear air conditioning?
- The hardware and components featured in the Coolant lines, rear air conditioning are specific to the 7 Series E66 760Li produced during 2008. These technical specifications ensure that parts like the Suction pipe (64538385653) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant lines, rear air conditioning assembly?
- Each item in the Coolant lines, rear air conditioning corresponds to the numbered list below the illustration. For the 7 Series E66 760Li, you can identify the Suction pipe by locating its position on the schematic, which then links to the official BMW part number 64538385653 for the Heater and Air Conditioning section.
