Evaporator, additional air conditioning for BMW 7 Series E66 735Li (2004)

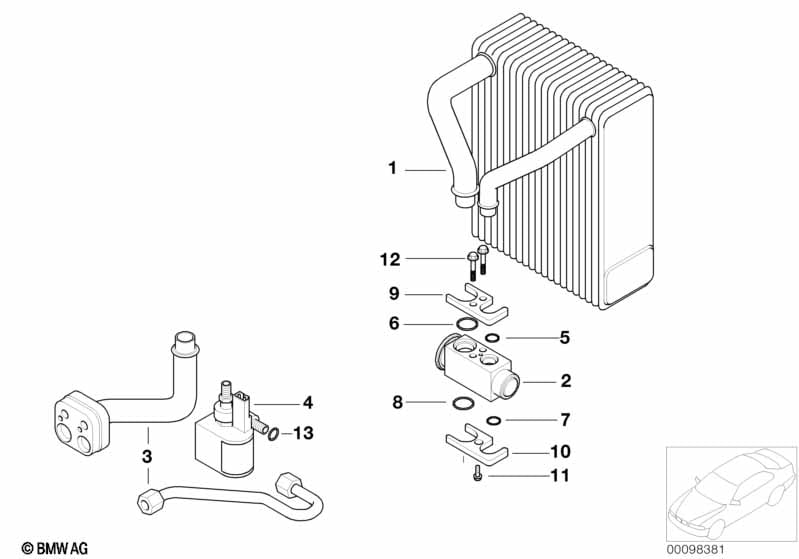

This Evaporator, additional air conditioning technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 735Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Evaporator | 1 | 64119134630 | $595.51 | Shop at ECS Tuning | |||||
| 02 | Expansion valve | 1 | 64119178315 | $145.03 | Shop at ECS Tuning | |||||
| 03 | Coolant pipe | 1 | 64106907745 | $110.28 | Shop at ECS Tuning | |||||
| 04 | Valve | R134A | 1 | 07/2007 | 64518390990 | $170.32 | Shop at ECS Tuning | |||
| 05 | Gasket ring | D=11.1MM | 1 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | D=14MM | 1 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | D=17,17MM | 1 | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 09 | Plate | 1 | 64111380572 | $7.27 | Shop at ECS Tuning | |||||
| 10 | Plate | 1 | 64111380573 | $8.10 | Shop at ECS Tuning | |||||
| 11 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Fillister head with washer | M5X35 | 2 | 64116910423 | $1.77 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | 2 | 64508390600 | $0.84 | Shop at ECS Tuning |
