Automatic air conditioning control for BMW 5 Series E60 530i (2005)

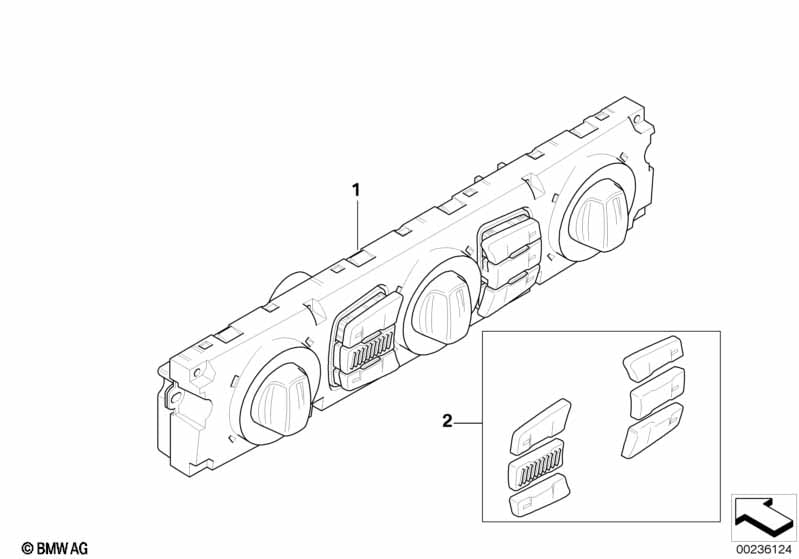

This Automatic air conditioning control technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IMPORTANT! Before ordering the control panel for automatic climate control always consult the repair instructions REP-64 11 323 up to 03/2007 and the repair instructions REP-64 11 324 for 03/2007 onward. |
|||||||||
| 01 | Control unit,automatic air cond.,Basis | 1 | 03/2007 | 64119122396 | $601.98 | Shop at ECS Tuning | ||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 01 | Control unit,automatic air cond.,Basis | 1 | 03/2007 | 64119122397 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set caps | 1 | 03/2007 | 61319250196 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
