Control unit, automatic air cond.,High for BMW 5 Series E60 520d (2007)

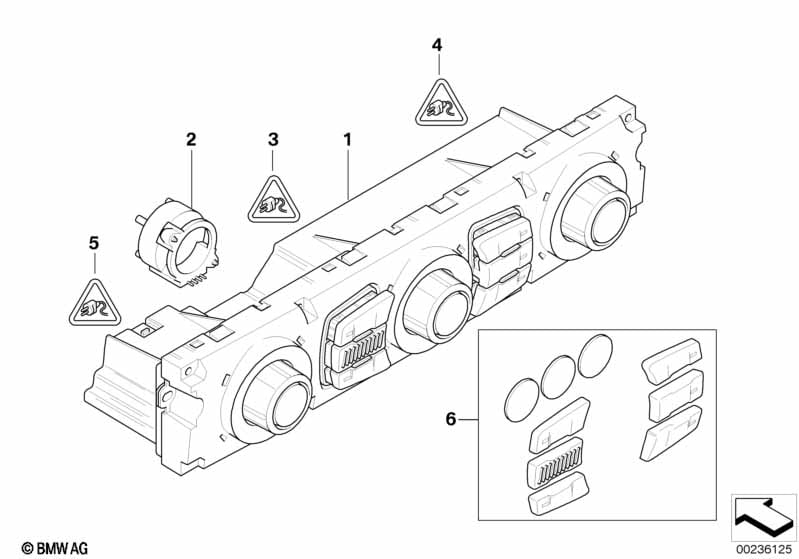

This Control unit, automatic air cond.,High technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IMPORTANT! Before ordering the control panel for automatic climate control always consult the repair instructions REP-64 11 323 up to 03/2007 and the repair instructions REP-64 11 324 for 03/2007 onward. For vehicles with Automatic air conditioning |
S534A=Yes |
||||||||
| 01 | Control unit, automatic air cond.,High | 1 | 03/2007 | 64119122398 | $733.85 | Shop at ECS Tuning | ||||
| 02 | Interior temperature sensor fan | 1 | 64116910342 | $52.73 | Shop at ECS Tuning | |||||
| 03 | Universal socket housing uncoded | 18 POL. | 1 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 1 | 61132471241 | Shop at ECS Tuning | |||||
| 04 | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Universal socket housing uncoded | 26 POL. | 1 | 61136913626 | $1.05 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | X | 61136931880 | Shop at ECS Tuning | |||||
| 05 | Socket housing, black | 2 POL. | 1 | 61131378108 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 | 1,0-2,5MM² | 2 | 61131376204 | $0.98 | Shop at ECS Tuning | ||||
| 06 | Set caps | 1 | 03/2007 | 61319250196 | Shop at ECS Tuning | |||||
