Actuator for autom. air condition Basis for BMW 5 Series E60 520i (2005)

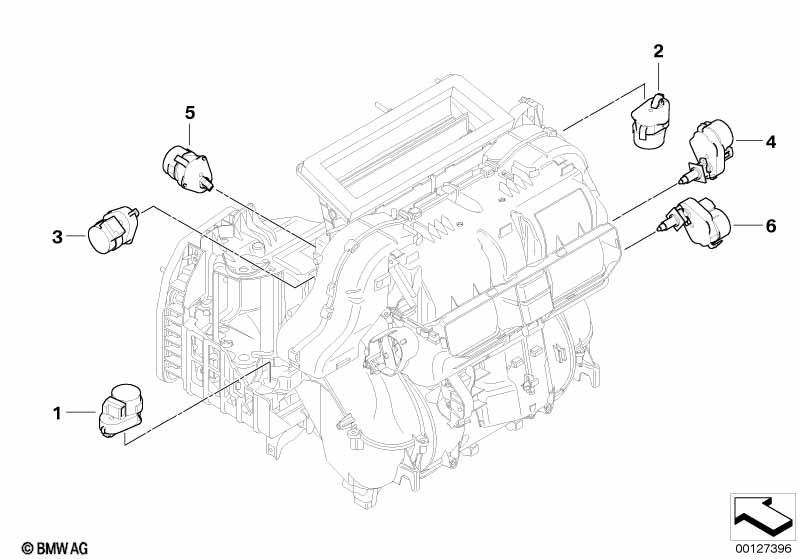

This Actuator for autom. air condition Basis technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | positng. drive, fresh air/recirc. left | 1 | 64116942991 | $82.13 | Shop at ECS Tuning | |||||
| 02 | positng. drive, fresh air/recirc. right | 1 | 64116942986 | $82.13 | Shop at ECS Tuning | |||||
| 03 | Actuator drive for defrost flap | 1 | 64116942994 | $82.13 | Shop at ECS Tuning | |||||
| 04 | Actuator ventilation, right | 1 | 64116942988 | $82.13 | Shop at ECS Tuning | |||||
| 05 | Actuator, left footwell flap | 1 | 64116942993 | $82.13 | Shop at ECS Tuning | |||||
| 06 | Actuator, air distribution flap | 1 | 64116942990 | $82.13 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 520i Actuator for autom. air condition Basis?
- This technical diagram illustrates the Actuator for autom. air condition Basis within the Heater and Air Conditioning group for the 5 Series E60 520i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the positng. drive, fresh air/recirc. left (Part #64116942991).
- Which models use the hardware listed in this Actuator for autom. air condition Basis?
- The hardware and components featured in the Actuator for autom. air condition Basis are specific to the 5 Series E60 520i produced during 2005. These technical specifications ensure that parts like the positng. drive, fresh air/recirc. left (64116942991) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Actuator for autom. air condition Basis assembly?
- Each item in the Actuator for autom. air condition Basis corresponds to the numbered list below the illustration. For the 5 Series E60 520i, you can identify the positng. drive, fresh air/recirc. left by locating its position on the schematic, which then links to the official BMW part number 64116942991 for the Heater and Air Conditioning section.
