Heater radiator automatic air condition for BMW 5 Series E60 525i (2007)

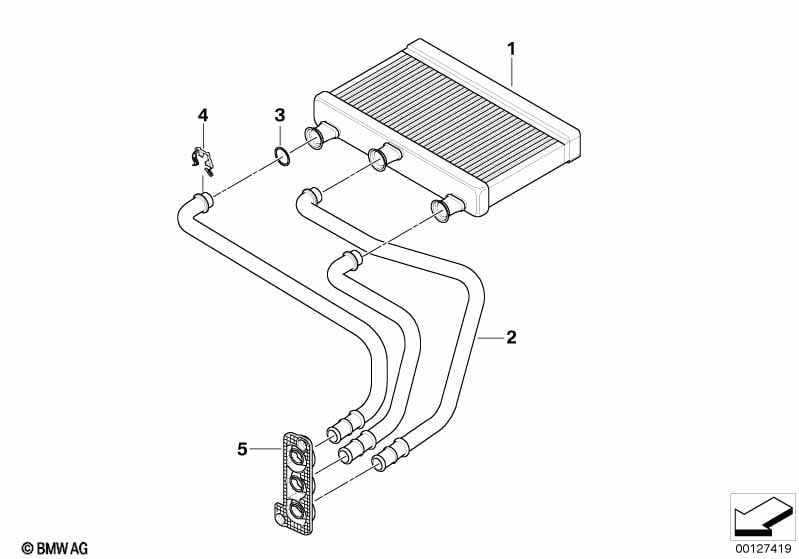

This Heater radiator automatic air condition technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator | 1 | 64116933922 | $111.43 | Shop at ECS Tuning | |||||
| 02 | Set pipe | 1 | 64116922603 | $62.80 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 02 | Set pipe | 1 | 64116922602 | $42.37 | Shop at ECS Tuning | |||||
| 03 | Gasket | 3 | 64116933923 | $0.33 | Shop at ECS Tuning | |||||
| 04 | Clip | 3 | 64116933924 | $4.58 | Shop at ECS Tuning | |||||
| 05 | Gasket | 1 | 64116933926 | $4.29 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 05 | Gasket | 1 | 64116933925 | $4.29 | Shop at ECS Tuning | |||||
