Temperature sensor for BMW 5 Series E60 520i (2005)

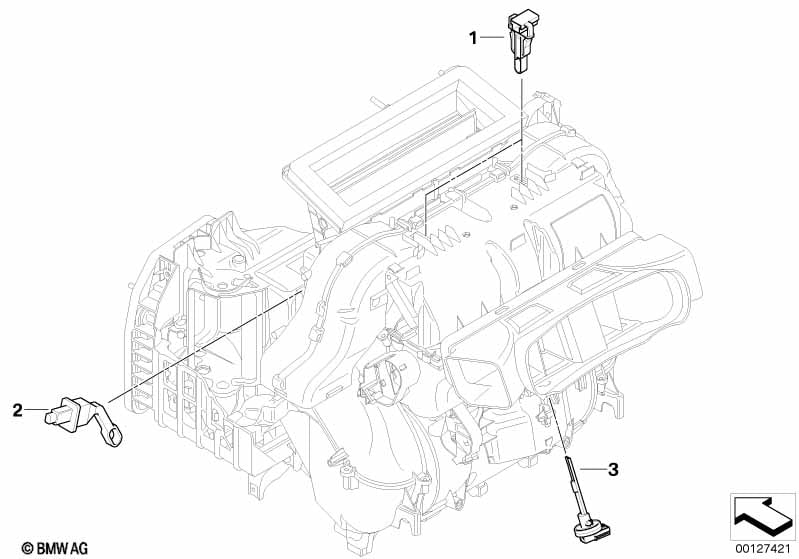

This Temperature sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Temperature sensor, heater | 1 | 64116920431 | $33.45 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 01 | Temperature sensor, heater | 2 | 64116920431 | $33.45 | Shop at ECS Tuning | |||||
| 02 | Evaporator temperature sensor | 1 | 64116920430 | $33.45 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 03 | Temperature sensor, cold-air distributor | 1 | 64116929095 | $33.45 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 520i Temperature sensor?
- This technical diagram illustrates the Temperature sensor within the Heater and Air Conditioning group for the 5 Series E60 520i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Temperature sensor, heater (Part #64116920431).
- Which models use the hardware listed in this Temperature sensor?
- The hardware and components featured in the Temperature sensor are specific to the 5 Series E60 520i produced during 2005. These technical specifications ensure that parts like the Temperature sensor, heater (64116920431) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Temperature sensor assembly?
- Each item in the Temperature sensor corresponds to the numbered list below the illustration. For the 5 Series E60 520i, you can identify the Temperature sensor, heater by locating its position on the schematic, which then links to the official BMW part number 64116920431 for the Heater and Air Conditioning section.
