Housing parts automatic air conditioning for BMW 5 Series E61 525d (2007)

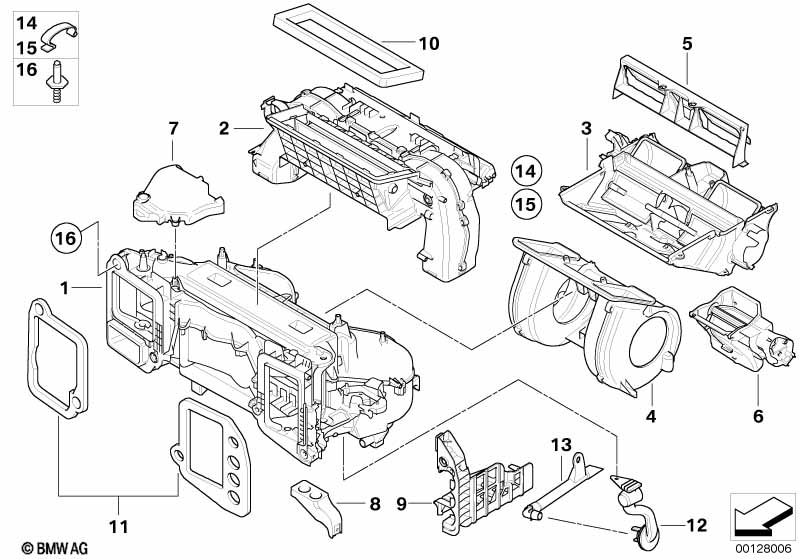

This Housing parts automatic air conditioning technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty housing, evaporator | 1 | 64116933900 | $35.87 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=No |
|||||||||
| 02 | Distributor housing, upper | 1 | 64116922562 | $65.42 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 02 | Distributor housing, upper | 1 | 64116921068 | $65.42 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning and Auxiliary heating |
S534A=Yes S536A=Yes |
|||||||||
| 03 | Distributor housing, bottom | 1 | 64116921065 | $102.55 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning and Auxiliary heating |
S534A=No S536A=No |
|||||||||
| 03 | Distributor housing, bottom | 1 | 64116922560 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic air conditioning and Auxiliary heating |
S534A=No S536A=Yes |
|||||||||
| 03 | Distributor housing, bottom | 1 | 64116922559 | $102.55 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning and Auxiliary heating |
S534A=Yes S536A=No |
|||||||||
| 03 | Distributor housing, bottom | 1 | 64116922561 | Shop at ECS Tuning | ||||||
| 04 | Empty housing, blower | 1 | 64116921066 | $19.20 | Shop at ECS Tuning | |||||
| 05 | Set of non-return flaps | 1 | 64116933905 | $20.88 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=No |
|||||||||
| 06 | Rear heater duct | 1 | 64116922598 | $11.03 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 06 | Rear heater duct | 1 | 64116921069 | $11.03 | Shop at ECS Tuning | |||||
| 07 | Cover | 1 | 64116933906 | $2.25 | Shop at ECS Tuning | |||||
| 08 | Holder | 2 | 64116933930 | $6.87 | Shop at ECS Tuning | |||||
| 09 | Pipe support | 1 | 64116933928 | $5.90 | Shop at ECS Tuning | |||||
| 10 | Sealing frame | 1 | 64116928555 | $4.49 | Shop at ECS Tuning | |||||
| 11 | Set of gaskets | 1 | 64116933929 | $11.05 | Shop at ECS Tuning | |||||
| 12 | Condensation water hose, left | 1 | 64116921613 | $11.14 | Shop at ECS Tuning | |||||
| 12 | Condensation water hose, right | 1 | 64116921614 | $11.14 | Shop at ECS Tuning | |||||
| 13 | Condensation drain hose, lower left | 1 | 64119288175 | Shop at ECS Tuning | ||||||
| 13 | Condensation drain hose, lower right | 1 | 64119288176 | Shop at ECS Tuning | ||||||
| 14 | Clamp | X | 64116933936 | $1.10 | Shop at ECS Tuning | |||||
| 15 | Clamp | X | 64116933937 | $1.02 | Shop at ECS Tuning | |||||
| 16 | Threaded bolt | 4 | 64116933931 | $3.32 | Shop at ECS Tuning | |||||
