Set of small parts, aut air cond housing for BMW 5 Series E60 520i (2005)

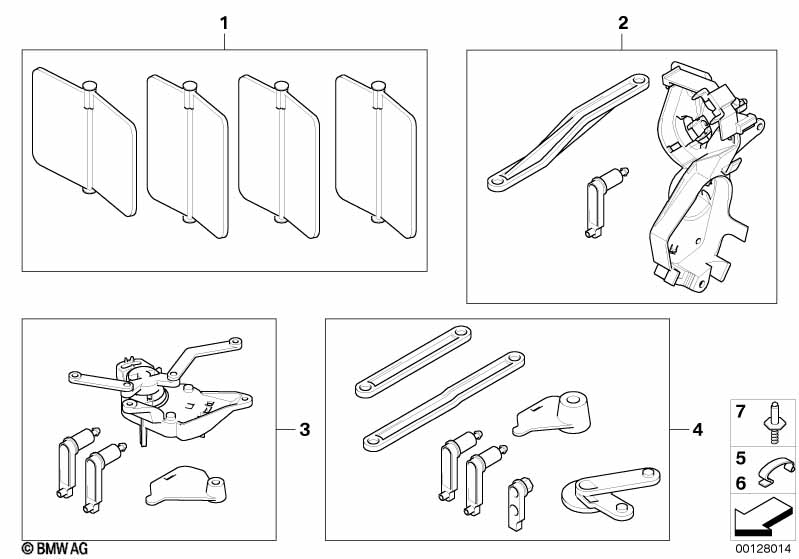

This Set of small parts, aut air cond housing technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of flaps | 1 | 64116933904 | $17.00 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 64116933908 | $61.18 | Shop at ECS Tuning | |||||
| 03 | Set of small parts adjust.lever | 1 | 64116933907 | $25.93 | Shop at ECS Tuning | |||||
| Right side | ||||||||||
| 04 | Set of small parts adjust.lever | 1 | 64116933909 | $11.58 | Shop at ECS Tuning | |||||
| Left side | ||||||||||
| 05 | Clamp | X | 64116933936 | $1.10 | Shop at ECS Tuning | |||||
| 06 | Clamp | X | 64116933937 | $1.02 | Shop at ECS Tuning | |||||
| 07 | Threaded bolt | 4 | 64116933931 | $3.32 | Shop at ECS Tuning | |||||
