Microfilter/activated Carbon container for BMW 3 Series E90 LCI 330i (2011)

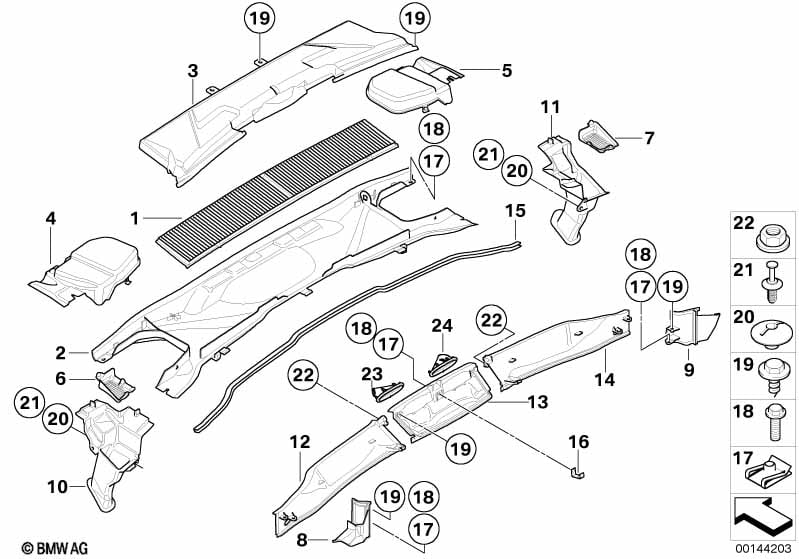

This Microfilter/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and Automatic air conditioning |
L8AAA=No S534A=No |
|||||||||
| 01 | Microfilter/activated Carbon container | 1 | 64319313519 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Automatic air conditioning |
L8AAA=No S534A=Yes |
|||||||||
| 01 | Microfilter/activated Carbon container | 1 | 64319313519 | Shop at ECS Tuning | ||||||
| 01 | Fine-dust filter | 1 | 64316803970 | Shop at ECS Tuning | ||||||
| 02 | Housing, microfilter, bottom part | 1 | 64316924277 | $84.89 | Shop at ECS Tuning | |||||
| 03 | Housing, microfilter, upper part | 1 | 64316987498 | $36.54 | Shop at ECS Tuning | |||||
| 04 | Covering left | 1 | 64316925017 | $6.67 | Shop at ECS Tuning | |||||
| 05 | Covering right | 1 | 64316925018 | $6.67 | Shop at ECS Tuning | |||||
| 06 | Leaf grill, left | 1 | 64319267637 | Shop at ECS Tuning | ||||||
| 07 | Leaf grill, right | 1 | 64319267638 | Shop at ECS Tuning | ||||||
| 08 | Water drain, left | 1 | 64316940855 | $6.40 | Shop at ECS Tuning | |||||
| 09 | Water drain, right | 1 | 64316940856 | $6.40 | Shop at ECS Tuning | |||||
| 10 | Water drain, left | 1 | 64316925977 | $8.25 | Shop at ECS Tuning | |||||
| 11 | Water drain, right | 1 | 64316925978 | $8.25 | Shop at ECS Tuning | |||||
| 12 | Panel heater left | 1 | 64316925973 | $14.44 | Shop at ECS Tuning | |||||
| 13 | Heater closing panel | 1 | 64316979758 | $14.44 | Shop at ECS Tuning | |||||
| 14 | Panel heater right | 1 | 64316925974 | $14.44 | Shop at ECS Tuning | |||||
| 15 | Profile-gasket | 1 | 64316935369 | $10.84 | Shop at ECS Tuning | |||||
| 16 | Holder | 1 | 64316934341 | $0.72 | Shop at ECS Tuning | |||||
| 17 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 17 | Body nut | ST6,3-2-ZNS3 | 1 | 11/2004 | 07129904232 | $0.16 | Shop at ECS Tuning | |||
| 18 | Hex bolt | M5X14 | 2 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 18 | Sheet metal screw | ST6,3X22 | 2 | 07119904268 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Fillister head screw | 4 | 07147118369 | $0.80 | Shop at ECS Tuning | |||||
| 20 | Push-button, gray | 2 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 21 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 22 | Hex nut | BM6-8-ZNNIV SI | 2 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 23 | Dome strut grommet, left | 1 | 64316964415 | $12.55 | Shop at ECS Tuning | |||||
| 24 | Dome strut grommet, right | 1 | 64316964416 | $12.55 | Shop at ECS Tuning | |||||
