Coolant lines for BMW 3 Series E90 LCI 325i (2011)

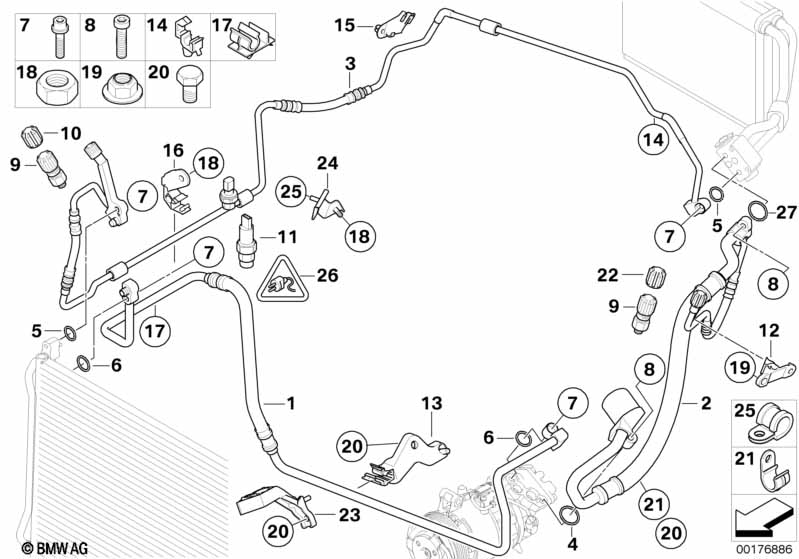

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy compressor-condenser | 1 | 64536927845 | $75.48 | Shop at ECS Tuning | |||||
| 02 | Suction pipe evaporator-compressor | 1 | 64509209716 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Bracket for air conditioning line | 1 | 64536964967 | $1.73 | Shop at ECS Tuning | |||||
| 03 | Pressure hose,condenser,evaporator | 1 | 64539151734 | Shop at ECS Tuning | ||||||
| 04 | Gasket ring | D=23 MM | 1 | 64508363041 | $1.22 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 9,5X2,5 | 2 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 07 | Fillister head with washer | M8X30-U1-ZNS3 | 4 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 08 | ISA screw | M8X25-10.9-ZNS3 | 2 | 07129904477 | $2.00 | Shop at ECS Tuning | ||||
| 09 | Valve | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| 10 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 12 | Filler connection bracket | 1 | 64536946346 | Shop at ECS Tuning | ||||||
| 12 | Filler connection bracket | 1 | 64536951642 | $3.51 | Shop at ECS Tuning | |||||
| 13 | Bracket pressure pipe airconditioner | 1 | 64536956711 | Shop at ECS Tuning | ||||||
| 14 | Bracket pressure pipe airconditioner | 1 | 64538369549 | $1.42 | Shop at ECS Tuning | |||||
| 14 | Dual clip | 1 | 64509169522 | $1.12 | Shop at ECS Tuning | |||||
| 15 | Bracket pressure pipe airconditioner | 1 | 64536939333 | $1.33 | Shop at ECS Tuning | |||||
| 16 | Bracket pressure pipe airconditioner | 1 | 64538369549 | $1.42 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | ASA-Bolt | M6X30-8.8 | 1 | 07129904573 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Bracket pressure pipe airconditioner | 1 | 64536946345 | Shop at ECS Tuning | ||||||
| replaces 6 960 579 | ||||||||||
| 17 | Bracket pressure pipe airconditioner | 1 | 64536951634 | $0.63 | Shop at ECS Tuning | |||||
| Clip on turbo | ||||||||||
| 18 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 19 | Hex nut with plate | M6 Z1-ZNNIV SI | 2 | 07146778500 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Self-locking hex nut | M6 | 2 | 07146938618 | $0.27 | Shop at ECS Tuning | ||||
| 20 | ISA screw | M10X20-8.8-ZNS3 | 2 | 07129904489 | Shop at ECS Tuning | |||||
| 20 | ISA screw | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 20 | Aluminium screw | M 8X17 | 3 | 11137544768 | $1.23 | Shop at ECS Tuning | ||||
| 21 | Bracket suction pipe airconditioner | 2 | 64536951641 | $2.35 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws power steering pump | 2 | 32420392609 | $7.65 | Shop at ECS Tuning | |||||
| 22 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 23 | Bracket suction pipe airconditioner | 1 | 64536927848 | $7.42 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket suction pipe airconditioner | 1 | 64536951641 | $2.35 | Shop at ECS Tuning | |||||
| 26 | Universal socket housing uncoded | 3 POL. | 1 | 09/2014 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 09/2014 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 09/2014 | 61130056961 | Shop at ECS Tuning | ||||
| 26 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 27 | Gasket ring | D=13,7 MM | 1 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
