Evaporator / Expansion valve for BMW 3 Series E90 LCI 330i (2011)

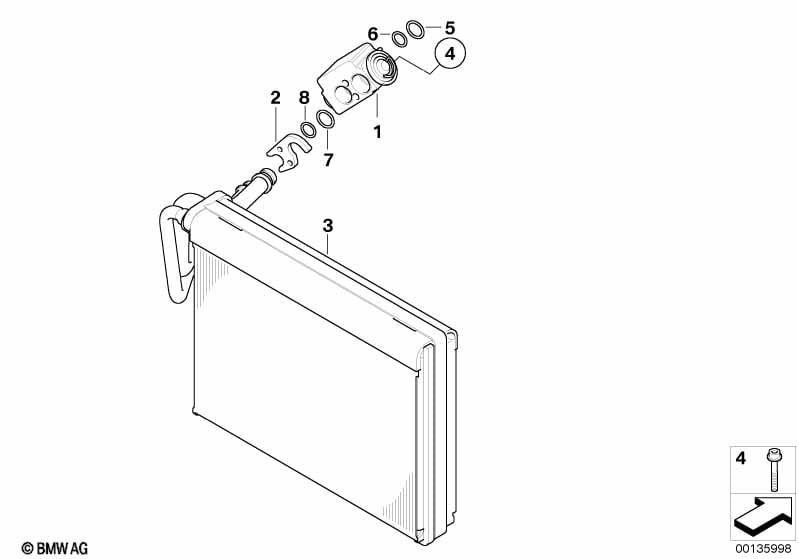

This Evaporator / Expansion valve technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion valve | R134A | 1 | 64119226078 | Shop at ECS Tuning | |||||
| 02 | Fixing clamp | 1 | 64116929488 | $2.70 | Shop at ECS Tuning | |||||
| for Denso only | ||||||||||
| 03 | Evaporator | DENSO | 1 | 64119179803 | Shop at ECS Tuning | |||||
| 04 | ISA screw | M6X37 | 2 | 07129906290 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | D=13,7 MM | 1 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 9,5X2,5 | 1 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | D=13,7 MM | 1 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | D=10,8 MM | 1 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
