Additional water pump/Water hose for BMW 1 Series E87 118d (2004)

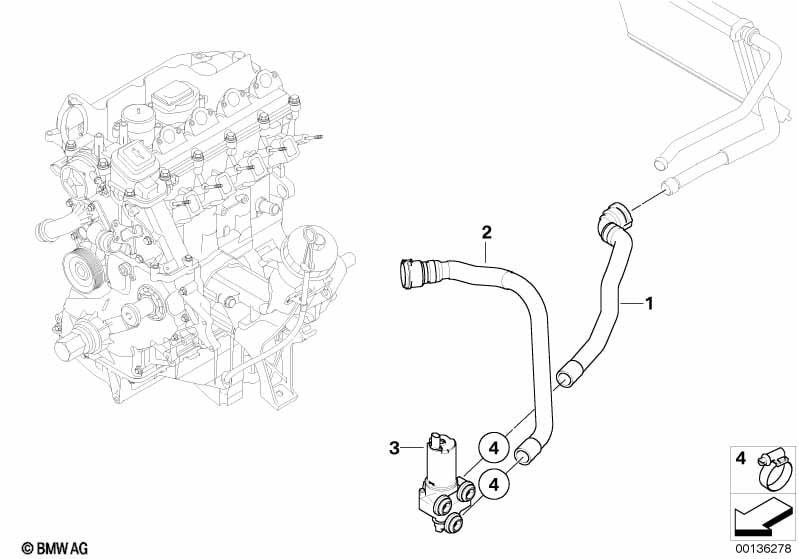

This Additional water pump/Water hose technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 01 | Hose f add.water pump snd heat.radiator | 1 | 64216928591 | $19.32 | Shop at ECS Tuning | |||||
| 02 | Hose f ADD.WATER PUMP,engine return | 1 | 64216928592 | Shop at ECS Tuning | ||||||
| 03 | Additional water pump | 1 | 64118369806 | $163.38 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 118d Additional water pump/Water hose?
- This technical diagram illustrates the Additional water pump/Water hose within the Heater and Air Conditioning group for the 1 Series E87 118d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Hose f add.water pump snd heat.radiator (Part #64216928591).
- Which models use the hardware listed in this Additional water pump/Water hose?
- The hardware and components featured in the Additional water pump/Water hose are specific to the 1 Series E87 118d produced during 2004. These technical specifications ensure that parts like the Hose f add.water pump snd heat.radiator (64216928591) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional water pump/Water hose assembly?
- Each item in the Additional water pump/Water hose corresponds to the numbered list below the illustration. For the 1 Series E87 118d, you can identify the Hose f add.water pump snd heat.radiator by locating its position on the schematic, which then links to the official BMW part number 64216928591 for the Heater and Air Conditioning section.
