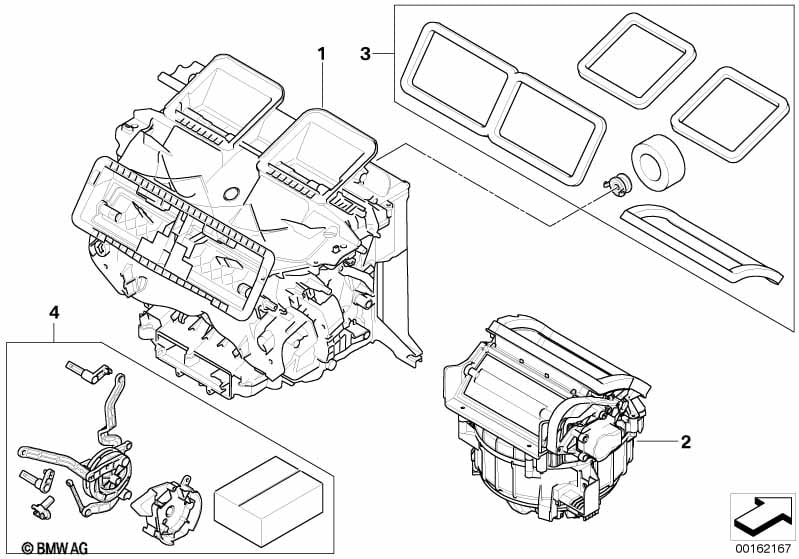

Housing parts heater and air cond. Denso for BMW 3 Series E90 320d (2007)
This Housing parts heater and air cond. Denso technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic air conditioning |
S534A=No |
||||||||
| 01 | Empty housing f heater/air condit.unit | 1 | 64119136167 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Auxiliary heater | X | 64119175923 | $478.63 | ENDED | Shop at ECS Tuning | ||||
| 02 | Blower housing | 1 | 64119210437 | Shop at ECS Tuning | ||||||
| 03 | Set of gaskets | 1 | 64116950976 | $9.16 | Shop at ECS Tuning | |||||
| 04 | Set small parts f air cond.adjust.lever | 1 | 64116950991 | $37.83 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
