Electric parts for AC unit for BMW 3 Series E90 318i (2008)

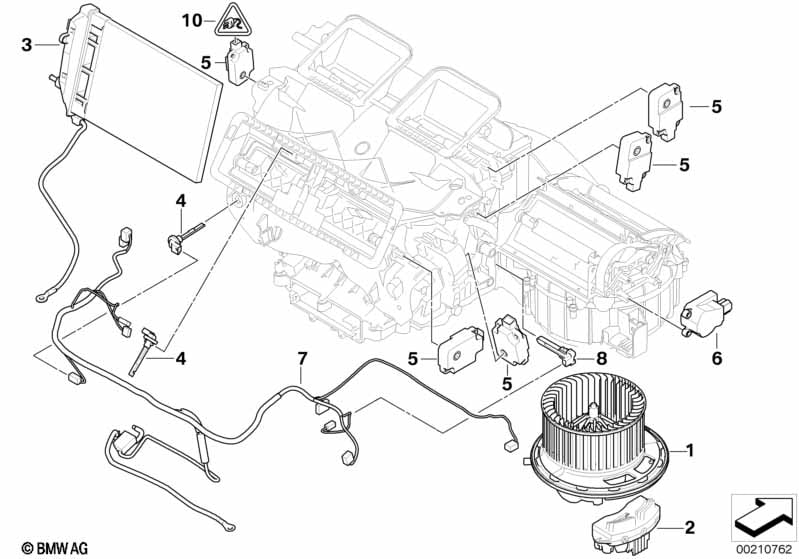

This Electric parts for AC unit technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Info on installation, see repair instructions REP-64 11 213! |
||||||||||
| 01 | Blower unit | 1 | 64119227670 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 2 | 64116987460 | Shop at ECS Tuning | ||||||
| 02 | Blower regulator | 1 | 64119265892 | Shop at ECS Tuning | ||||||
| 04 | Temperature sensor | 2 | 64226915391 | $33.45 | Shop at ECS Tuning | |||||
| 05 | Actuator | X | 64119321034 | Shop at ECS Tuning | ||||||
| only suitable for heating/A/C Denso | ||||||||||
| 06 | Actuator, fresh air recirc. | 1 | 64119339246 | Shop at ECS Tuning | ||||||
| only suitable for heating/A/C Valeo | ||||||||||
| 06 | Actuator | 1 | 64119321034 | Shop at ECS Tuning | ||||||
| 07 | Wiring set, heater/air conditioning | VALEO | 1 | 64116941439 | $54.07 | Shop at ECS Tuning | ||||
| 07 | Wiring set, heater/air conditioning | DENSO | 1 | 64116932680 | $54.07 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning |
S534A=No |
|||||||||
| 07 | Wiring set, heater/air conditioning | 1 | 64116932682 | Shop at ECS Tuning | ||||||
| 08 | Temperature sensor, heater/evaporator | 1 | 64116930015 | $33.45 | Shop at ECS Tuning | |||||
| 09 | Universal DFK socket housing uncoded | 4 POL. | 1 | 61136925196 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double leaf spring contact | 0,5-1,0 MM²(AG) | X | 61138377730 | $0.63 | Shop at ECS Tuning | ||||
| -- | Double leaf spring contact | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 10 | Socket housing | 4 POL. | 5 | 61136925598 | $0.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Covering cap | 4 POL. | 5 | 61136925596 | Shop at ECS Tuning | |||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | X | 61136931880 | Shop at ECS Tuning | |||||
