Housing parts aut.air conditioning Denso for BMW 3 Series E90 330d (2008)

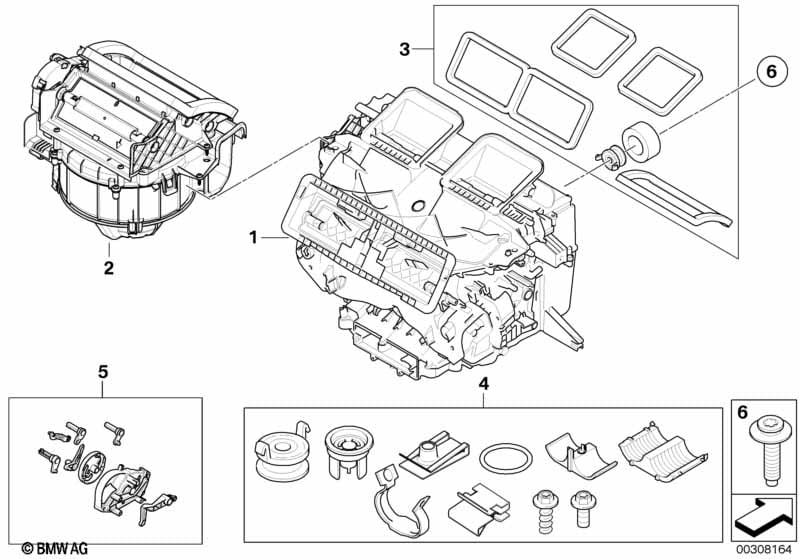

This Housing parts aut.air conditioning Denso technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic air conditioning |
S534A=Yes |
||||||||
| 01 | Empty housing f heater/air condit.unit | 1 | 64119136171 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Auxiliary heater | X | 64119175923 | $478.63 | ENDED | Shop at ECS Tuning | ||||
| 02 | Blower housing | 1 | 64119210437 | Shop at ECS Tuning | ||||||
| 03 | Set of gaskets | 1 | 64116950976 | $9.16 | Shop at ECS Tuning | |||||
| 04 | Set of parts Heater/Air condit. housing | 1 | 64116962301 | $27.90 | Shop at ECS Tuning | |||||
| 05 | Set small parts/ctrl lever rear kinem. | 1 | 64116950996 | $39.12 | Shop at ECS Tuning | |||||
| 06 | Fillister head with washer | M8X42MM | 1 | 64116931770 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
