Air cond.compressor-supporting bracket for BMW 5 Series E61 LCI 530d (2010)

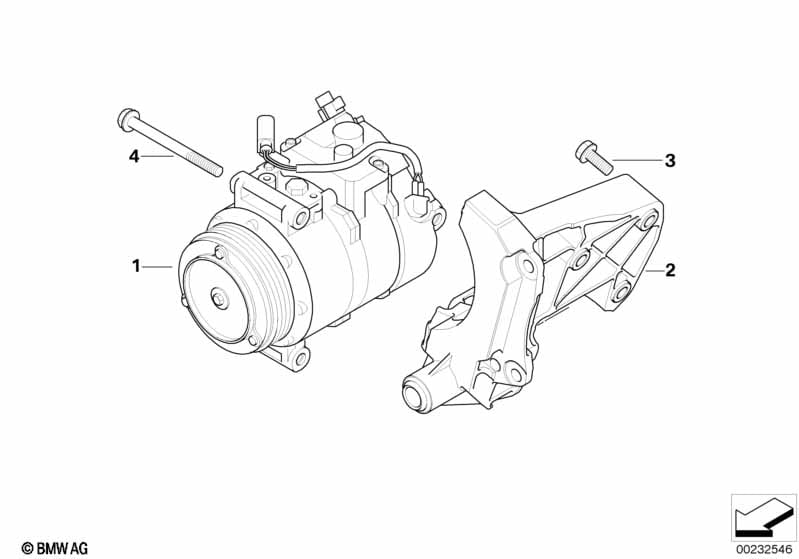

This Air cond.compressor-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air conditioning compressor | 1 | 03/2007 | 64509180548 | $1174.35 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 01 | Air conditioning compressor | 1 | 03/2007 | 64509180547 | Shop at ECS Tuning | |||||
| 02 | Climate compressor supporting bracket | 1 | 09/2004 | 64557792202 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X40-U1-8.8 | 4 | 07/2007 | 07119904514 | $0.49 | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M8X90-U1 | 3 | 07119905392 | $1.53 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 530d Air cond.compressor-supporting bracket?
- This technical diagram illustrates the Air cond.compressor-supporting bracket within the Heater and Air Conditioning group for the 5 Series E61 LCI 530d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Air conditioning compressor (Part #64509180548).
- Which models use the hardware listed in this Air cond.compressor-supporting bracket?
- The hardware and components featured in the Air cond.compressor-supporting bracket are specific to the 5 Series E61 LCI 530d produced during 2010. These technical specifications ensure that parts like the Air conditioning compressor (64509180548) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air cond.compressor-supporting bracket assembly?
- Each item in the Air cond.compressor-supporting bracket corresponds to the numbered list below the illustration. For the 5 Series E61 LCI 530d, you can identify the Air conditioning compressor by locating its position on the schematic, which then links to the official BMW part number 64509180548 for the Heater and Air Conditioning section.
