Water valve/Water hose IHKA Basis for BMW 5 Series E60 LCI 525xi (2009)

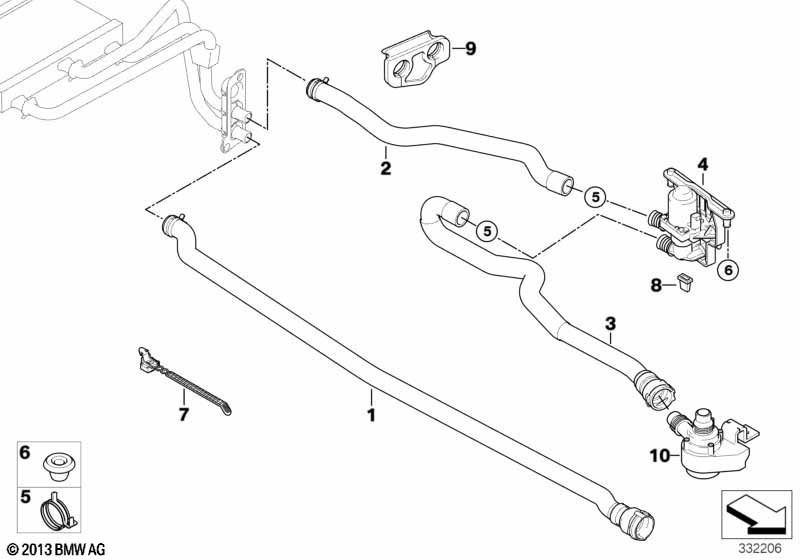

This Water valve/Water hose IHKA Basis technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic air conditioning and Auxiliary heating |
S534A=No S536A=No |
||||||||
| 01 | Hose f radiator and engine return | 1 | 64216932051 | $29.86 | Shop at ECS Tuning | |||||
| 02 | Hose f water valve and radiator | 1 | 64216911001 | $14.84 | Shop at ECS Tuning | |||||
| 03 | Hose f additional water pump/water valve | 1 | 64216923944 | $24.54 | Shop at ECS Tuning | |||||
| 04 | Water valve | 1 | 64118379921 | $92.27 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | D=27MM | 2 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 06 | Grommet | 2 | 64116915444 | $1.63 | Shop at ECS Tuning | |||||
| 07 | Cable tie | 3 | 61131391721 | $1.77 | Shop at ECS Tuning | |||||
| 08 | Rubber Mounting | 1 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 09 | Grommet | 1 | 64216915173 | $7.25 | Shop at ECS Tuning | |||||
