Water hoses for BMW 3 Series E90 323i (2005)

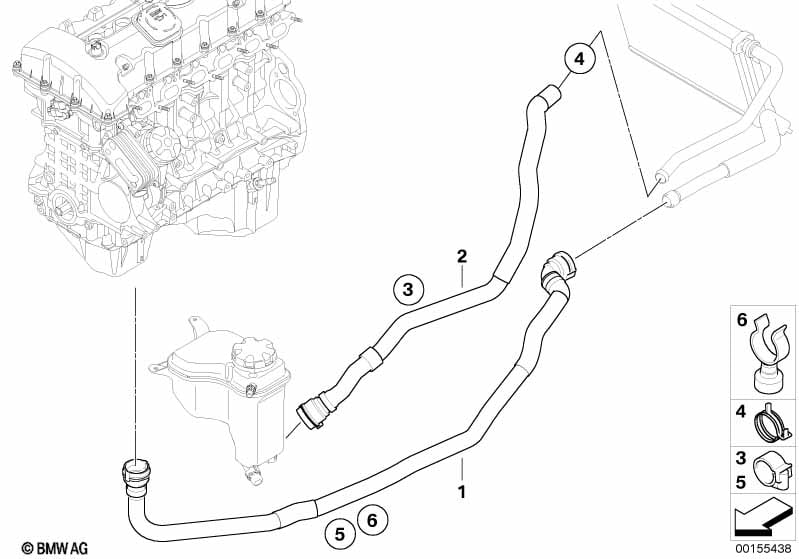

This Water hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 01 | Hose f engine inlet and heater radiator | 1 | 03/2005 | 64219178427 | $29.86 | Shop at ECS Tuning | ||||
| 02 | Hose f radiator and engine return | 1 | 64216951946 | $29.86 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | 2 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 04 | Spring ring shell | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | 1 | 03/2005 | 64216963248 | $0.83 | Shop at ECS Tuning | ||||
