Spare parts, auxiliary heater Bypass Sys for BMW 3 Series E90 LCI 320d (2011)

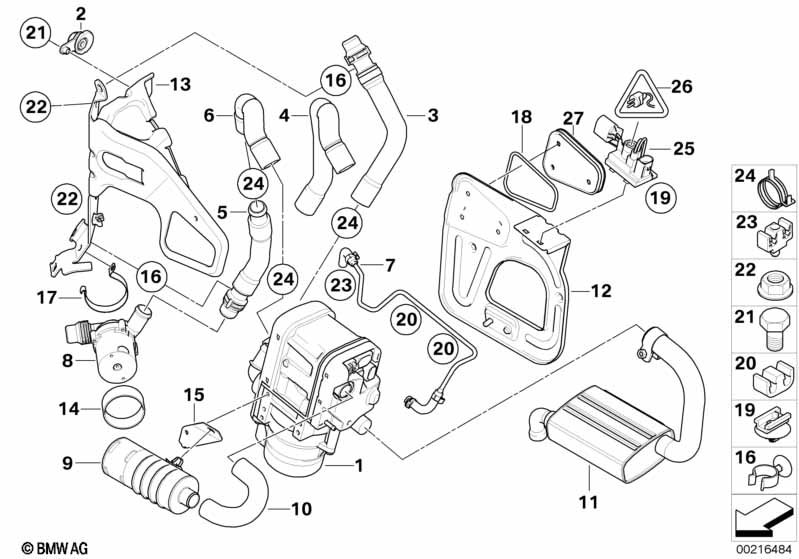

This Spare parts, auxiliary heater Bypass Sys technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for vehicles Retrofit parked-car heater Inline heating circuit |
|||||||||
| only applies to Fuel pump, auxiliary heater, with gray housing |
||||||||||
| 01 | Auxiliary heating | 1 | 64129242141 | Shop at ECS Tuning | ||||||
| 02 | Holder for additional radiator | 1 | 17217540030 | $4.58 | Shop at ECS Tuning | |||||
| 03 | Hose | 1 | 09/2006 | 64129112340 | Shop at ECS Tuning | |||||
| 05 | Hose | 1 | 64126969295 | Shop at ECS Tuning | ||||||
| 06 | Hose | 1 | 64126953078 | Shop at ECS Tuning | ||||||
| 07 | Fuel hose | 1 | 64129229015 | Shop at ECS Tuning | ||||||
| 08 | Water pump f Independent heater | 1 | 64129227716 | Shop at ECS Tuning | ||||||
| 09 | Intake muffler | 1 | 64126953072 | Shop at ECS Tuning | ||||||
| 10 | Air intake hose | 1 | 64129184793 | Shop at ECS Tuning | ||||||
| 11 | Exhaust pipe/muffler | 1 | 64126953081 | Shop at ECS Tuning | ||||||
| 12 | Bracket exhaust pipe | 1 | 64126953083 | Shop at ECS Tuning | ||||||
| 13 | Bracket for Independent heater | 1 | 64129110391 | Shop at ECS Tuning | ||||||
| 14 | Support, water pump | 1 | 64126953097 | Shop at ECS Tuning | ||||||
| 15 | Bracket. intake silencer | 1 | 64126953785 | Shop at ECS Tuning | ||||||
| 16 | Hose clamp | 2 | 64126953784 | Shop at ECS Tuning | ||||||
| 17 | Support | 1 | 64126953810 | Shop at ECS Tuning | ||||||
| 18 | Rubber buffer | 1 | 64126953071 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Torx bolt | M5X12 | 4 | 64126989253 | Shop at ECS Tuning | |||||
| 19 | Plug-in connection bracket | 1 | 61136920043 | $0.40 | Shop at ECS Tuning | |||||
| 20 | Spacer holder | 2 FACH | 2 | 07130519991 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Hex bolt | M6X20-U2-8.8 | 1 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 22 | Hex nut with plate | M8-Z2 | 2 | 07147144953 | $0.82 | Shop at ECS Tuning | ||||
| 23 | Dual clip | 1 | 64126960558 | Shop at ECS Tuning | ||||||
| 24 | Hose clamp | D=27MM | 3 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 25 | Reverse-polarity protection | 1 | 64126954974 | Shop at ECS Tuning | ||||||
| 26 | Socket housing 2 pins | 1 | 12527505459 | $2.53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | X | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| -- | Single conductor seal | 0,75-1,0MM² | X | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
| -- | Grommet | 1 | 12527555099 | $3.37 | Shop at ECS Tuning | |||||
| 27 | Tension plate | 1 | 64126953070 | ENDED | Shop at ECS Tuning | |||||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
