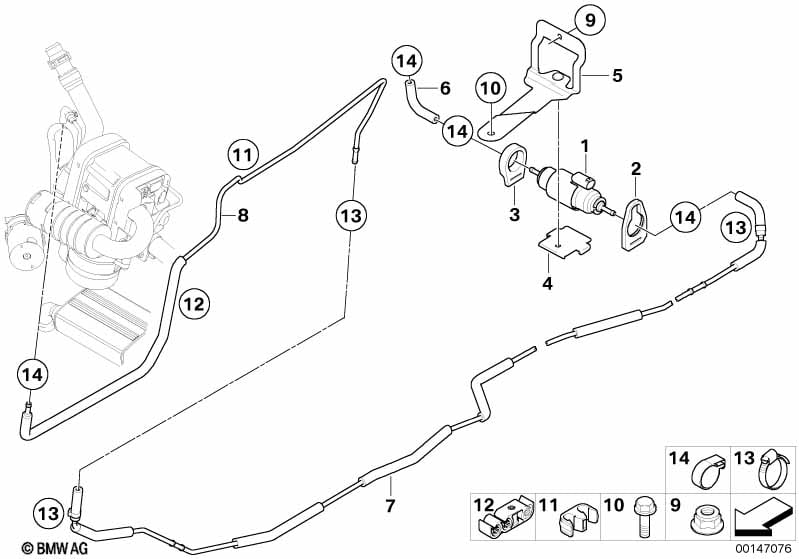

Fuel supply/pump/tubing for BMW 3 Series E90 320d (2007)
This Fuel supply/pump/tubing technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Always observe mandatory EPC data when specifying combinations of fuel metering pump and auxiliary heater! |
|||||||||
| 01 | Fuel pump | SCHWARZ | 1 | 09/2007 | 64126951678 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Parked car heater diesel | X | 09/2007 | 64126974470 | Shop at ECS Tuning | |||||
| Number corresponds to base unit read out by tester not suitable for Retrofit parked-car heater Inline heating circuit |
||||||||||
| 02 | Bracket, fuel pump, pressure side | 1 | 64126953799 | Shop at ECS Tuning | ||||||
| 03 | Bracket, fuel pump, suction side | 1 | 64126953798 | Shop at ECS Tuning | ||||||
| 04 | Braket fuel pump | 1 | 64126953796 | Shop at ECS Tuning | ||||||
| 05 | Holder | 1 | 64126953789 | Shop at ECS Tuning | ||||||
| 06 | Fuel hose, suction side | 1 | 64129229018 | Shop at ECS Tuning | ||||||
| 07 | Fuel hose, pressure side | 1 | 03/2008 | 64129110728 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pipe clip | X | 03/2008 | 16127176926 | $3.07 | ENDED | Shop at ECS Tuning | |||
| 07 | Fuel hose, pressure side | 1 | 64129229016 | Shop at ECS Tuning | ||||||
| 08 | Auxiliary heating fuel pipe | 1 | 03/2008 | 64129131568 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pipe clip | 1 | 03/2008 | 16127176926 | $3.07 | ENDED | Shop at ECS Tuning | |||
| 08 | Auxiliary heating fuel pipe | 1 | 64129131568 | Shop at ECS Tuning | ||||||
| 09 | Hex nut | M6-8-ZNS3 | 1 | 07119902751 | $0.56 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X16-U2-ZNS3 | 1 | 07119902913 | Shop at ECS Tuning | |||||
| 11 | Spacer holder | 2 FACH | 1 | 07130519991 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Pipe clip | 1 | 64126971731 | Shop at ECS Tuning | ||||||
| 12 | Brake pipe bracket | 1 | 34306751993 | $4.18 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | 66/100 | 5 | 64121378285 | $1.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
