Additional water pump/Water hose for BMW 3 Series E91 330d (2008)

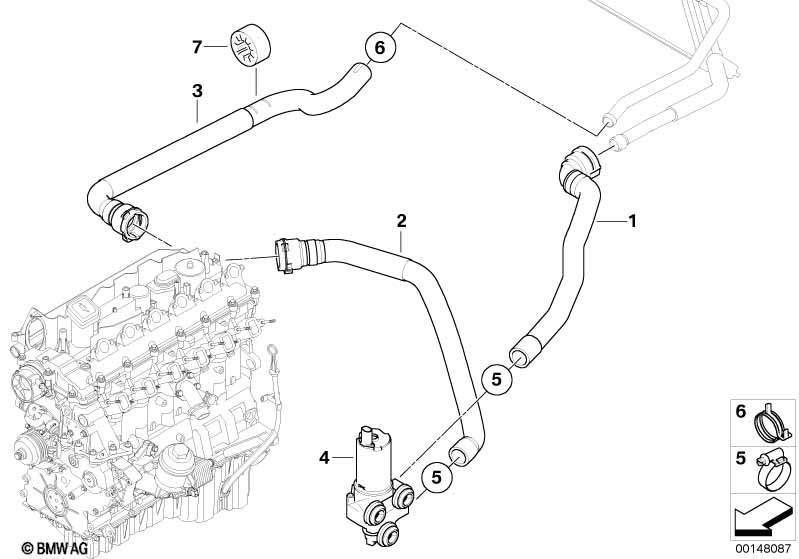

This Additional water pump/Water hose technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 01 | Hose f add.water pump snd heat.radiator | 1 | 64216928591 | $19.32 | Shop at ECS Tuning | |||||
| 02 | Hose f ADD.WATER PUMP,engine return | 1 | 12/2009 | 64216928593 | $15.66 | Shop at ECS Tuning | ||||
| 03 | Hose f radiator and engine return | 1 | 64216928595 | Shop at ECS Tuning | ||||||
| 04 | Additional water pump | 1 | 64118369806 | $163.38 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Spring ring shell | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
| 07 | Absorber | 1 | 64216901626 | Shop at ECS Tuning | ||||||
