Air-conditioner compressor/mounting part for BMW 3 Series E90 LCI 325d (2010)

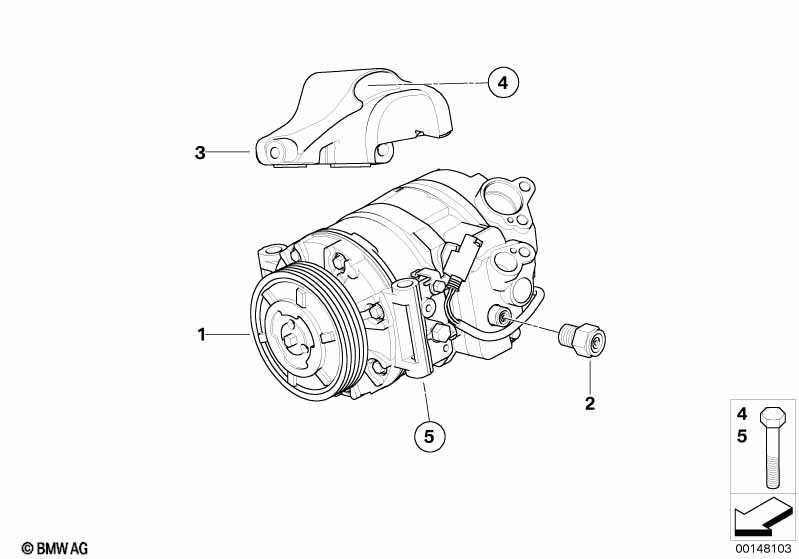

This Air-conditioner compressor/mounting part technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air conditioning compressor | 1 | 64526924792 | Shop at ECS Tuning | ||||||
| 02 | Relief valve | 1 | 64526910463 | $57.10 | Shop at ECS Tuning | |||||
| 03 | Climate compressor supporting bracket | 1 | 64557792318 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M8X28-ZNNIV SI | 3 | 07119905530 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X90-U1 | 3 | 07119905392 | $1.53 | Shop at ECS Tuning |
