Water valve/Water hose IHKA Basis for BMW 5 Series E60 LCI 520d (2009)

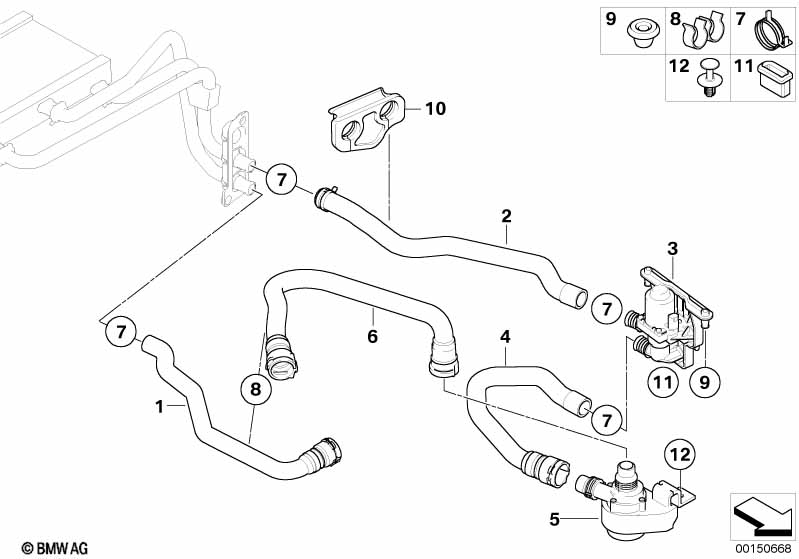

This Water valve/Water hose IHKA Basis technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic air conditioning and Auxiliary heating |
S534A=No S536A=No |
||||||||
| 01 | Hose f radiator and engine return | 1 | 64216985736 | Shop at ECS Tuning | ||||||
| 02 | Hose f water valve and radiator | 1 | 64216911001 | $14.84 | Shop at ECS Tuning | |||||
| 04 | Hose f additional water pump/water valve | 1 | 64216917699 | Shop at ECS Tuning | ||||||
| 05 | Additional water pump | 1 | 64216917700 | Shop at ECS Tuning | ||||||
| Hose with two rapid-couplings | ||||||||||
| 06 | Hose auxiliary water pump, engine flow | 1 | 64216985734 | Shop at ECS Tuning | ||||||
| 07 | Hose clamp | D=27MM | 4 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | D=18/D=25 | 1 | 12511309471 | $1.50 | Shop at ECS Tuning | ||||
| 09 | Grommet | 2 | 64116915444 | $1.63 | Shop at ECS Tuning | |||||
| 10 | Grommet | 1 | 64216915173 | $7.25 | Shop at ECS Tuning | |||||
| 11 | Rubber Mounting | 1 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 12 | Expanding rivet | D = 8MM | 1 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
