Independ.heating water valves IHKA High for BMW 5 Series E61 LCI 520d (2007)

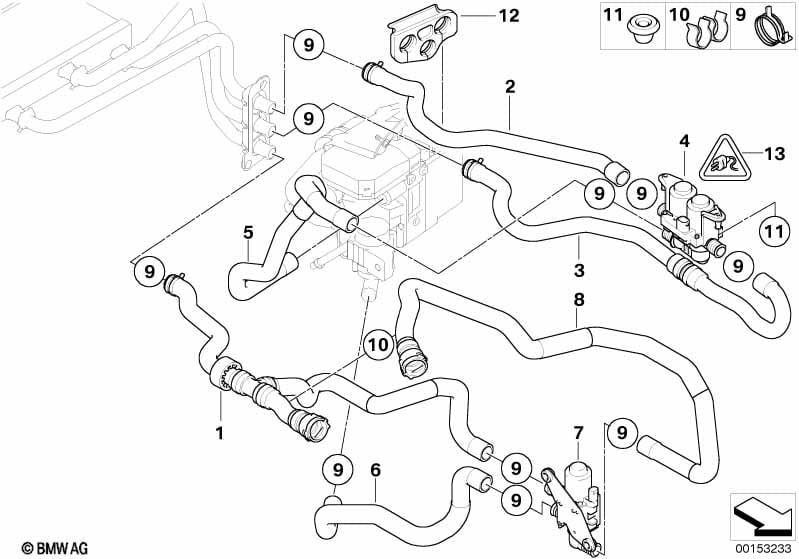

This Independ.heating water valves IHKA High technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic air conditioning and Auxiliary heating |
S534A=Yes S536A=Yes |
||||||||
| 01 | Hose f radiator and engine return | 1 | 64216912734 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hose f water valve and radiator | 1 | 64216910757 | $14.84 | Shop at ECS Tuning | |||||
| 02 | Hose, inlet | 1 | 64216985735 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Hose f radiator and water valve | 1 | 64216917410 | Shop at ECS Tuning | ||||||
| 04 | Water valve | 1 | 64116906652 | $124.52 | Shop at ECS Tuning | |||||
| 05 | Hose,water valve and independent heating | 1 | 64216912708 | Shop at ECS Tuning | ||||||
| 06 | Hose, parking heater changeover valve | 1 | 64216912707 | Shop at ECS Tuning | ||||||
| 06 | Hose, parking heater changeover valve | 1 | 64216959112 | Shop at ECS Tuning | ||||||
| 07 | Changeover valve | 1 | 64126911797 | Shop at ECS Tuning | ||||||
| 08 | Hose,change-over valve and engine return | 1 | 64216912730 | Shop at ECS Tuning | ||||||
| 09 | Hose clamp | D=27MM | 11 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | 2 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 11 | Grommet | 2 | 64116915444 | $1.63 | Shop at ECS Tuning | |||||
| 12 | Grommet | 1 | 64216915171 | $7.25 | Shop at ECS Tuning | |||||
| 13 | Universal socket housing uncoded | 2 POL. | 1 | 02/2008 | 61138795954 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 02/2008 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 02/2008 | 61130056961 | Shop at ECS Tuning | ||||
| 13 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 61130056961 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
