Coolant lines for BMW 5 Series E61 LCI 520d (2007)

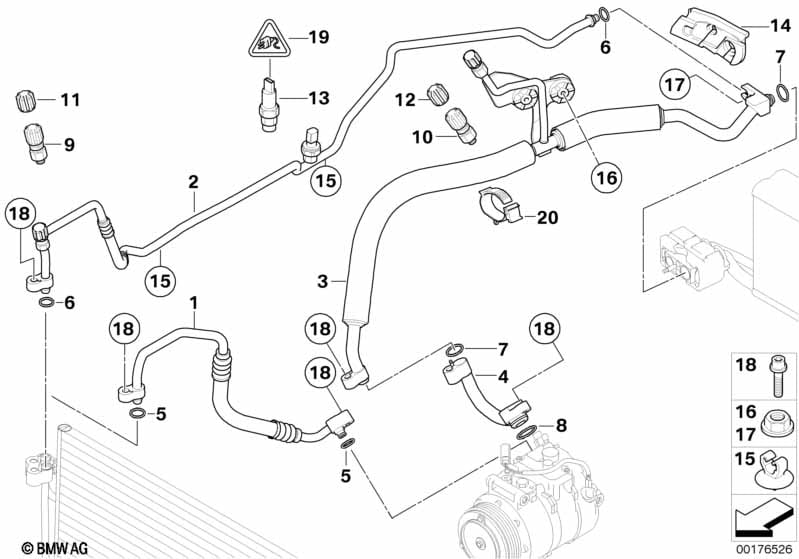

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy compressor-condenser | 1 | 64536911952 | ENDED | Shop at ECS Tuning | |||||
| 02 | Pressure hose,condenser,evaporator | 1 | 64509184101 | Shop at ECS Tuning | ||||||
| 03 | Suction pipe | 1 | 64539155339 | Shop at ECS Tuning | ||||||
| 04 | Adapter for suction pipe | 1 | 64536951366 | Shop at ECS Tuning | ||||||
| 05 | Gasket ring | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 9,5X2,5 | 2 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | D=13,7 MM | 2 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 23X2,5 | 1 | 64506909894 | $0.98 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO PRESSURE HOSE ASSY |
||||||||||
| 09 | Valve insert, pressure line | R134A | 1 | 06/2008 | 64509177577 | $10.87 | Shop at ECS Tuning | |||
| ONLY APPLIES TO SUCTION PIPE |
||||||||||
| 10 | Valve insert, suction line | R134A | 1 | 06/2008 | 64509177579 | $10.87 | Shop at ECS Tuning | |||
| 11 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 12 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 13 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 14 | Grommet, air cond. lines | 1 | 64536915174 | $7.35 | Shop at ECS Tuning | |||||
| 15 | Pipe clip | D= 10MM | 2 | 64536919700 | $0.72 | Shop at ECS Tuning | ||||
| 16 | Hex nut | BM6-8-ZNNIV SI | 2 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 18 | Fillister head with washer | M8X30-U1-ZNS3 | 5 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Universal socket housing uncoded | 3 POL. | 1 | 09/2010 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 09/2010 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0,5-1,5 MM² | 3 | 09/2010 | 61138353706 | $0.27 | Shop at ECS Tuning | |||
| 19 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 0,5-1,5 MM² | 3 | 61138353706 | $0.27 | Shop at ECS Tuning | ||||
| 20 | Hose clamp | 1 | 64509194765 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
