Air-conditioner compressor/mounting part for BMW 1 Series E88 135i (2013)

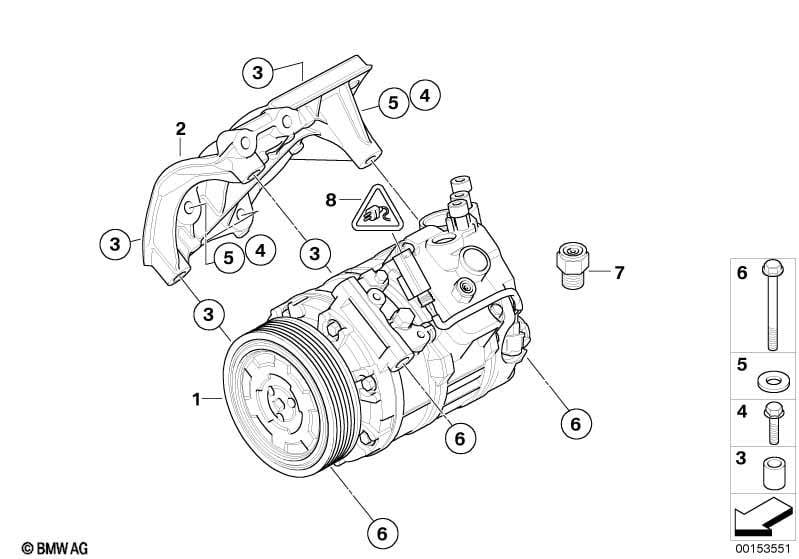

This Air-conditioner compressor/mounting part technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air conditioning compressor | 1 | 64526956719 | $1069.17 | Shop at ECS Tuning | |||||
| 02 | Climate compressor supporting bracket | 1 | 64557556836 | $62.47 | +core | Shop at ECS Tuning | ||||
| 03 | Dowel | D=11,1MM | 4 | 11121726245 | $1.62 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X40-U1-8.8 | 3 | 07119904514 | $0.49 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X90-U1 | 3 | 07119905392 | $1.53 | Shop at ECS Tuning | ||||
| 07 | Relief valve | 1 | 64526910463 | $57.10 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 135i Air-conditioner compressor/mounting part?
- This technical diagram illustrates the Air-conditioner compressor/mounting part within the Heater and Air Conditioning group for the 1 Series E88 135i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Air conditioning compressor (Part #64526956719).
- Which models use the hardware listed in this Air-conditioner compressor/mounting part?
- The hardware and components featured in the Air-conditioner compressor/mounting part are specific to the 1 Series E88 135i produced during 2013. These technical specifications ensure that parts like the Air conditioning compressor (64526956719) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air-conditioner compressor/mounting part assembly?
- Each item in the Air-conditioner compressor/mounting part corresponds to the numbered list below the illustration. For the 1 Series E88 135i, you can identify the Air conditioning compressor by locating its position on the schematic, which then links to the official BMW part number 64526956719 for the Heater and Air Conditioning section.
