Coolant lines for BMW 3 Series E90 LCI 335i (2010)

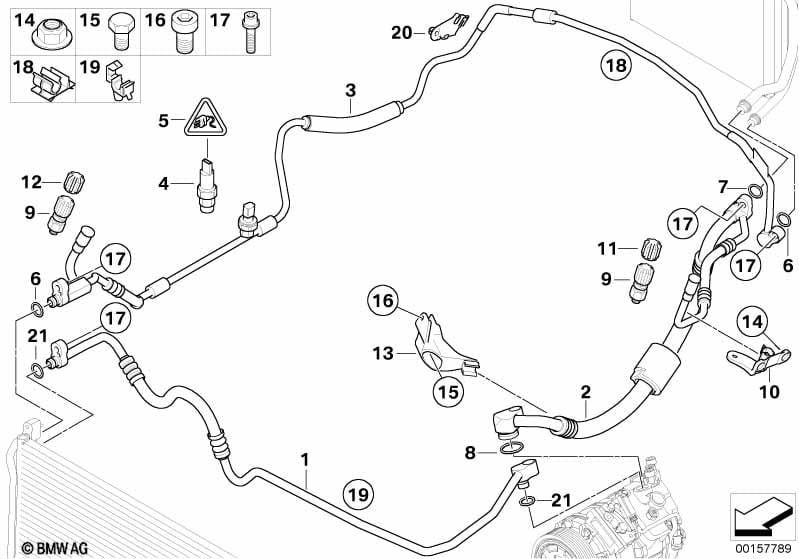

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy compressor-condenser | 1 | 64539239768 | Shop at ECS Tuning | ||||||
| 02 | Suction pipe evaporator-compressor | 1 | 64509209717 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket for air conditioning line | 1 | 64536964967 | $1.73 | Shop at ECS Tuning | |||||
| 03 | Pressure hose,condenser,evaporator | 1 | 64539151738 | $231.72 | Shop at ECS Tuning | |||||
| 04 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 05 | Universal socket housing uncoded | 3 POL. | 1 | 10/2013 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 10/2013 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 10/2013 | 61130056961 | Shop at ECS Tuning | ||||
| 05 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | D=13,7 MM | 1 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | D=23 MM | 1 | 64508363041 | $1.22 | Shop at ECS Tuning | ||||
| 09 | Valve | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| 10 | Bracket suction pipe airconditioner | 1 | 64536957494 | $8.44 | Shop at ECS Tuning | |||||
| 11 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 12 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 13 | Tubing support | 1 | 64506981613 | $8.46 | Shop at ECS Tuning | |||||
| 13 | Line bracket for a/c compressor | 1 | 64539132483 | $11.83 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M5X12-U1-ZNFESI | 2 | 07119902815 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M6 | 2 | 07146938618 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Aluminium screw | M 8X17 | 1 | 11137544768 | $1.23 | Shop at ECS Tuning | ||||
| 16 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 17 | Fillister head with washer | M8X30-U1-ZNS3 | 6 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 18 | Bracket pressure pipe airconditioner | 1 | 64536951634 | $0.63 | Shop at ECS Tuning | |||||
| 19 | Dual clip | 1 | 64509169522 | $1.12 | Shop at ECS Tuning | |||||
| 20 | Bracket pressure pipe airconditioner | 1 | 64536939333 | $1.33 | Shop at ECS Tuning | |||||
| 21 | Gasket ring | 9,5X2,5 | 2 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
