Independent heating water valves for BMW 3 Series E90 335i (2008)

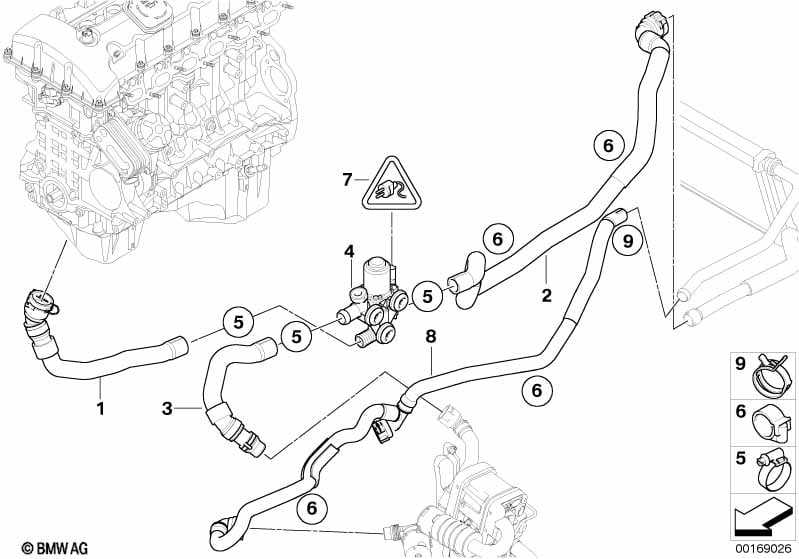

This Independent heating water valves technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| 01 | Hose f engine inlet-changeover valve | 1 | 64219111757 | Shop at ECS Tuning | ||||||
| 02 | Hose f radiator-changeover valve | 1 | 64219111758 | Shop at ECS Tuning | ||||||
| 03 | Hose, parking heater changeover valve | 1 | 64219111759 | Shop at ECS Tuning | ||||||
| 04 | Changeover valve | 1 | 64126951815 | $150.56 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | 2 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 08 | Hose f radiator and engine return | 1 | 64216951946 | $29.86 | Shop at ECS Tuning | |||||
| 09 | Spring ring shell | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 335i Independent heating water valves?
- This technical diagram illustrates the Independent heating water valves within the Heater and Air Conditioning group for the 3 Series E90 335i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Hose f engine inlet-changeover valve (Part #64219111757).
- Which models use the hardware listed in this Independent heating water valves?
- The hardware and components featured in the Independent heating water valves are specific to the 3 Series E90 335i produced during 2008. These technical specifications ensure that parts like the Hose f engine inlet-changeover valve (64219111757) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Independent heating water valves assembly?
- Each item in the Independent heating water valves corresponds to the numbered list below the illustration. For the 3 Series E90 335i, you can identify the Hose f engine inlet-changeover valve by locating its position on the schematic, which then links to the official BMW part number 64219111757 for the Heater and Air Conditioning section.
